Antenna Products
Showing all 5 results
-

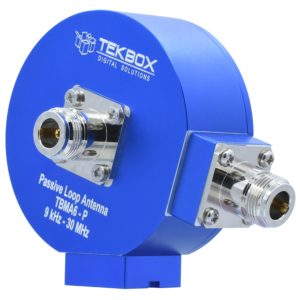

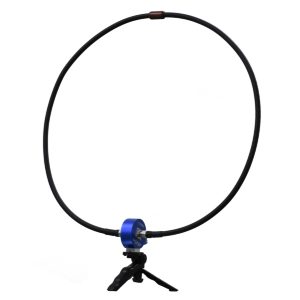

Antenna ProductsPassive Loop Antenna TekBox TBMA6-P
The loop antenna is designed for radiated emission measurements in the frequency range of 9 kHz – 30 MHz, according to CISPR 16.
- Characterized frequency range: 9 kHz to 30 MHz
- Magnetic field antenna factor: -20 dB/Ωm @ 30 MHz, typ.
- Electric field antenna factor: 31,5 dB/m @ 30 MHz, typ.
- Sensitivity: -24 dBµA/m @ 30 MHz
The loop antenna is designed for radiated emission measurements in the frequency range of 9 kHz –
...(0 reviews)₹219,990.00₹174,990.00 Add to cart -

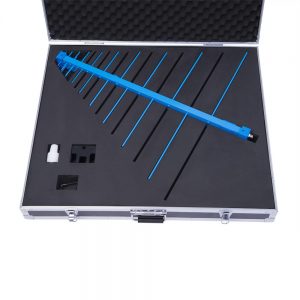

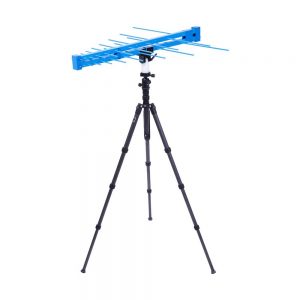

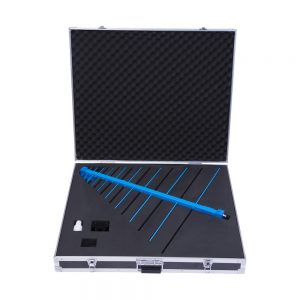

Antenna ProductsLog Periodic Antenna TekBox TBMA3
The TBMA3 is characterized from 250 MHz to 1.3 GHz and has VSWR and antenna factor values typical for log-periodic measurement antennas.
- Type: logarithmic periodic
- Frequency range: 250 MHz– 1300 MHz
- Nominal impedance: 50Ω
- Maximum continuous input RF power: 100 W
The TBMA3 is characterized from 250 MHz to 1.3 GHz and has VSWR and antenna factor values typical fo
...(0 reviews)₹224,900.00₹186,990.00 Add to cart -

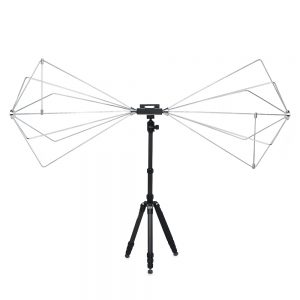

Antenna ProductsBiconical Antenna TekBox TBMA2
The TBMA2 is a small, lightweight, 30 MHz to 300 MHz and has a directional pattern similar to a dipole antenna…
- Type: passive biconical
- Frequency range: 30 MHz– 300 MHz
- Nominal impedance: 50 Ω
- Balun: 1:4
- Maximum continuous input RF power: 100 W
The TBMA2 is a small, lightweight, 30 MHz to 300 MHz and has a directional pattern similar to a dipo
...(0 reviews)₹189,990.00₹154,990.00 Add to cart -

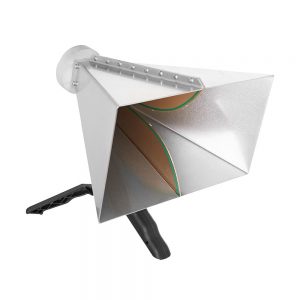

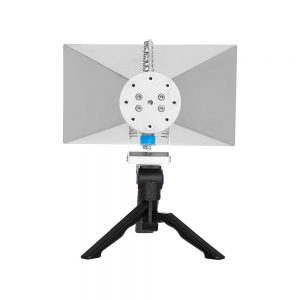

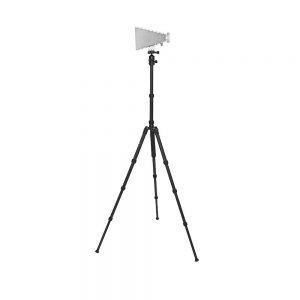

Antenna ProductsDouble Ridged Horn Antenna TekBox TBMA4
The TBMA4 is characterized from 1 GHz to 8 GHz and has a directional pattern typical for double ridged horn antennas..
- Type: double ridged horn
- Frequency range: 1 GHz – 8 GHz
- Nominal impedance: 50 Ω
- Connector: N type female
- Maximum continuous input RF power: 100 W
The TBMA4 is characterized from 1 GHz to 8 GHz and has a directional pattern typical for double ridg
...(0 reviews)₹138,990.00₹108,990.00 Add to cart -

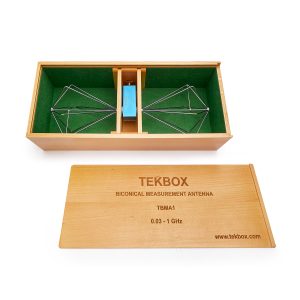

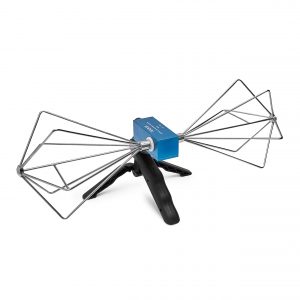

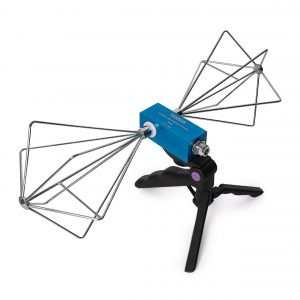

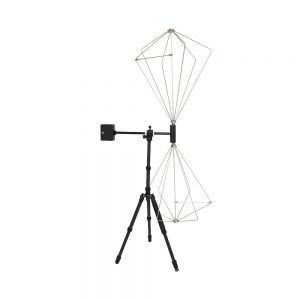

Antenna ProductsBiconical Antenna TekBox TBMA1
The TBMA1 is a small, lightweight, 30MHz to 1GHz biconical measurement antenna..
- Type: passive biconical
- Frequency range: 30MHz – 1000MHz
- Nominal impedance: 50Ω
- Maximum continuous input RF power: 2W
The TBMA1 is a small, lightweight, 30MHz to 1GHz biconical measurement antenna..
Type:
...(0 reviews)₹108,990.00₹90,490.00 Add to cart
