Probe Station
Showing all 4 results
-

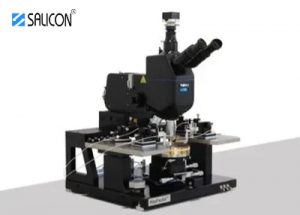

Probe StationIPS Probe Station
4~12 inch set ups. Modular design, highly cost-effective and can be upgraded as your requirements changes.
Probe stations are very expensive and durable lab equipment. Many users only have very limited budgets at the beginning but their test requirements could change over time. This will result in idle equipment and more capital costs.
IPS allows you to start with a probe station with very competitive price. You can upgrade the system easily as their test requirements change. With the modular design, you simply choose from various chuck options, microscope options and test kits. The ease of upgrade capability protects your current investment for future needs.
4~12 inch set ups. Modular design, highly cost-effective and can be upgraded as your requirements ch
...(0 reviews) -

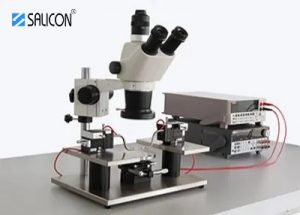

Probe StationSimplePS Probe Station
4~8 inch entry level probe station. Highly cost-effective for tests and measurement requirements of I-V/CV, RF tests, etc.
SimplePS probe stations can meet your urgent needs of probe staitons. We can ship to you within ONE week for standard SimplePS systems.
The most common set up for SimplePS probe station systems are:
1. Basic I-V tests: SimplePS Probe Station, DTP100 Micropostioner, S10 Series probe holders.
2. Precision I-V/C-V tests: SimplePS Probe Station, DTP100 Micropostioner, CPA-10 coax probe, FP-A100 probe adapter, MiniShield shield enclosure.
3. RF tests: SimplePS Probe Station, DCP100 Micropostioner, M40A RF probe, RFH100 probe adapter.
Users can also choose from our various accessories such as cameras, vacuum pumps, cable assemblies, adapters, etc.
4~8 inch entry level probe station. Highly cost-effective for tests and measurement requirements of
...(0 reviews) -

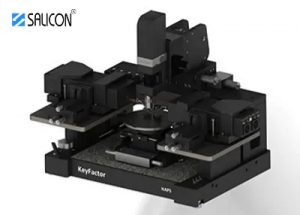

Probe StationHAPS Probe Station
4~12 inch set ups. Modular design, highly cost-effective and can be upgraded as your requirements changes.
In order to acquire accurate and reliable test results in the cutting edge tests, one of the key factors is to use a probe station system with ultra mechanical accuracy and stability.
HAPS is built on a granite base with less than 5 micron planarity. This design not only assures the high planarity in X-Y motion but also provides a rigid and stable platform for high accuracy tests. To achieve positioning accuracy, we use precise micrometer heads to drive spring loaded X-Y axes. With an air bearing X-Y stage, user will be able to move the X-Y in coarse positioning smoothly and quickly, thus greatly reducing set up time and improving test efficiency. One of the most common applications of HAPS is millimeter wave device characterization. The accuracy and stability act as an important role in protection of fragile and expensive mmW probes while producing reliable test results.
4~12 inch set ups. Modular design, highly cost-effective and can be upgraded as your requirements ch
...(0 reviews) -

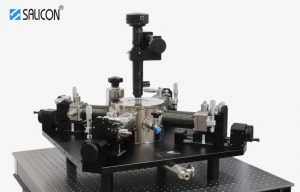

Probe StationCryoPS Cryogenic Probe Station
1~8 inch set ups. Precisely controlled cryogenic test environment. Affordable and upgradable cryogenic probe station with compact footprint.
KeyFactor’s CryoPS offers a cryogenic environment with 10^-3or6 mbar vacuum level. It meets the requirements for non-destructive measurement of the electrical properties of materials and early-stage electronic devices.
Users can start with a standard system and upgrade to a higher level probe station with higher vacuum level and temperature range. Dedicated design is also available upon request.
Typical applications include sampling IV and CV curves over a wide range of temperatures, measuring microwave and electro-optical responses, characterizing magneto-transport properties in variable magnetic fields, Hall-effect measurements to understand carrier mobility, and a variety of other material studies.
1~8 inch set ups. Precisely controlled cryogenic test environment. Affordable and upgradable cryogen
...(0 reviews)
