RF Current Probe

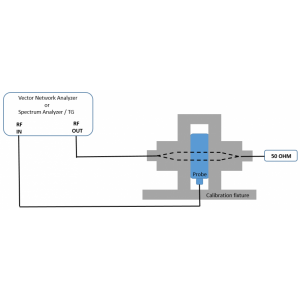

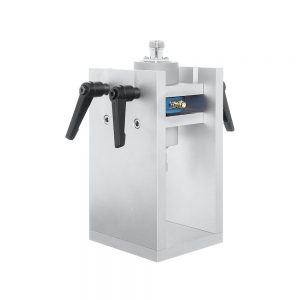

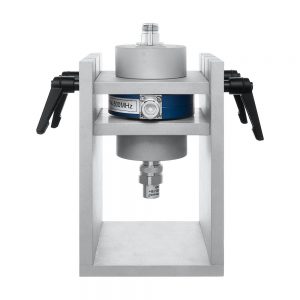

The TekBox TBCP3-CAL is a calibration fixture corresponding with the TBCP3 RF current monitoring probe.

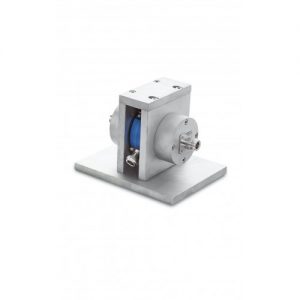

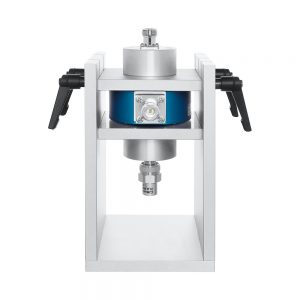

The TekBox TBCP2-CAL is a calibration fixture corresponding with the TBCP2 RF current monitoring probe.

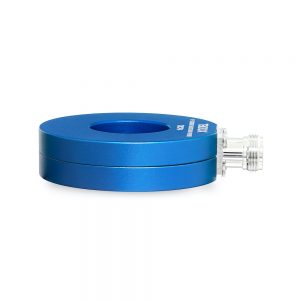

The TekBox TBCP4-500 is a fixed aperture RF current monitoring probe, it has a very flat response with a 3dB bandwidth of 500 MHz and is characterized and usable over the frequency range from 10kHz to 500 MHz. The aperture of the RF current monitoring probe is 32 mm.

The TekBox TBCP4-250 is a fixed aperture RF current monitoring probe, it has a very flat response with a 3dB bandwidth of 250 MHz and is characterized and usable over the frequency range from 10kHz to 250 MHz. The aperture of the RF current monitoring probe is 32 mm.

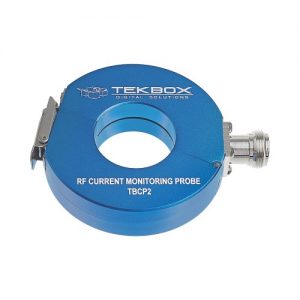

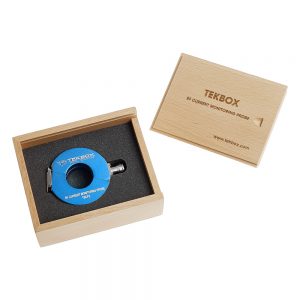

The TekBox TBCP2-750 is a snap-on RF current monitoring probe. It has a very flat response with a 3dB bandwidth of 750 MHz and is characterized and usable over the frequency range from 10kHz to 750 MHz. The aperture of the RF current monitoring probe is 32 mm. Its transfer impedance is > 15 dB Ohm in the range from 1 MHz to 750 MHz.

The TekBox TBCP2-500 is a snap-on RF current monitoring probe. It has a very flat response with a 3dB bandwidth of 500 MHz and is characterized and usable over the frequency range from 10kHz to 500 MHz. The aperture of the RF current monitoring probe is 32 mm. Its transfer impedance is > 17 dB Ohm in the range from 1 MHz to 500 MHz.
