Description
Air core inductor 5uH is used for measurement of grounding self-inductive effect as per GMW 3172.
Features:
- Easy connection and operation;
- Portable;

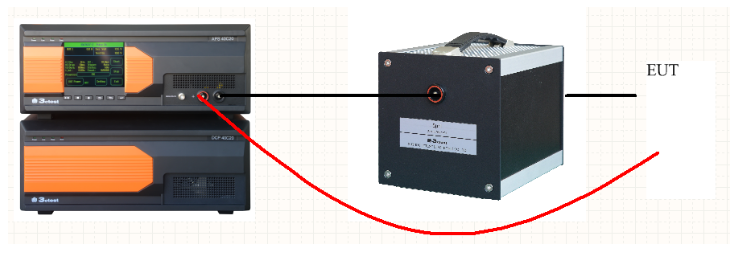

Equipment Conneciton Diagram

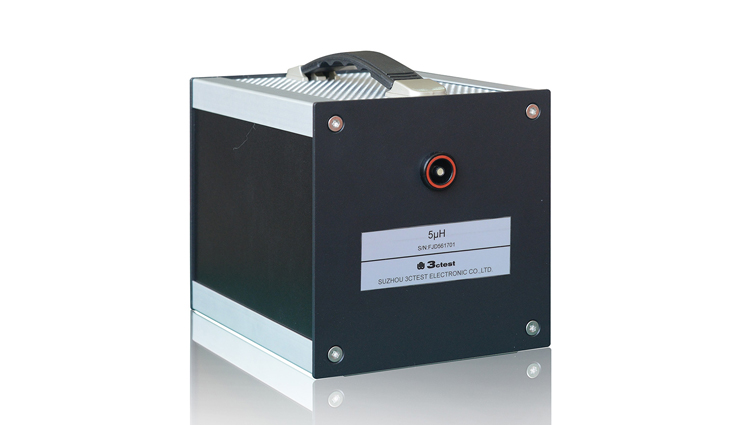

5 μH Air Core Inductor -5uH
Standard
- GMW 3172
Specifications
| Technical Parameters | |
|---|---|
| Inductance | 5 μH |
| Rated Voltage | DC 50 V |
| Rated Current | 50 A |
| Dimension | 220 x 160 x 170 mm |
| Weight | Approx. 2.2 kg |
