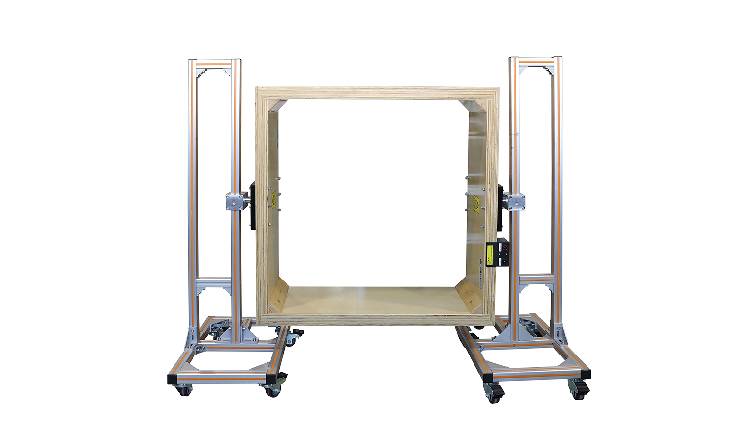

AC/DC Magnetic Field Coil TCXS1153

Model：TCXS1153

AC/DC magnetic field coil is a high reliability testing coil specially designed for the characteristics and requirements of magnetic field immunity testing of electrical and electronic products.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

Introduction：

AC/DC magnetic field coil is a high reliability testing coil specially designed for the characteristics and requirements of magnetic field immunity testing of electrical and electronic products. The coil meets the requirements of IEC61000-4-8, GB/T17626.8, and EN 50121-5. Provide an accurate basis for the anti-interference test of the tested equipment in the power frequency magnetic field. Power frequency magnetic field testing mainly simulates the magnetic field environment of residential areas, commercial districts, industrial and mining enterprises, power plants, as well as medium and high voltage substations.

Features：

  • During testing, the direction of the coil magnetic field can be adjusted by rotating 360 °.
  • The height can be adjusted up and down.
  • Good stability of output magnetic field strength.
  • Structural Design of Aluminum Profile Support.

Standard

  • IEC 61000-4-8
  • GB/T 17626.8
  • EN 50121-5

Specifications

Technical Parameters
Magnetic Field Intensity 1 A/m – 1000 A/m
Output Frequency 0 – 60 Hz continuously adjustable
Current Distortion Rate < 5%
Test Duration 1 A/m – 400 A/m (1 s – 28800 s);
401 A/m – 1000 A/m (1 s – 10 s)
Trigger Method Automatic and manual
Size of Magnetic Field Coil 1 m × 1 m, multiple turns
Overall Coil Size 1320 × 1050 × 360 mm (length × width × height)
Coil Size 1720 × 650 × 1450 mm (length × width × height) (coil vertically placed), Adjustable coil height (manual)
Packaging Size 1700 × 650 × 1450 mm (length × width × height)
Weight About 92.5 kg

Downloads

Adobe PDF

AC/DC Magnetic Field Coil TCXS1153 Series Datasheet

Language: English
