Description
R/1-16/1134 can provide adjustable impedance from 1 Ω to 16 Ω. The max power is 4000 W.
Features:
- High accuracy, non-inclusive resistors

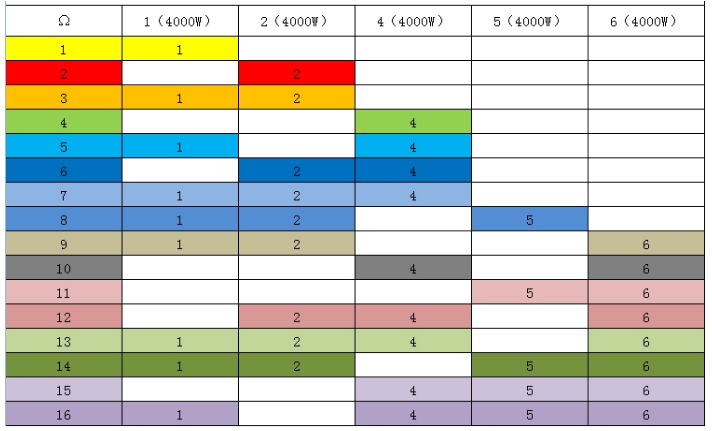

Manual Adjustment of Cascade Resistors:

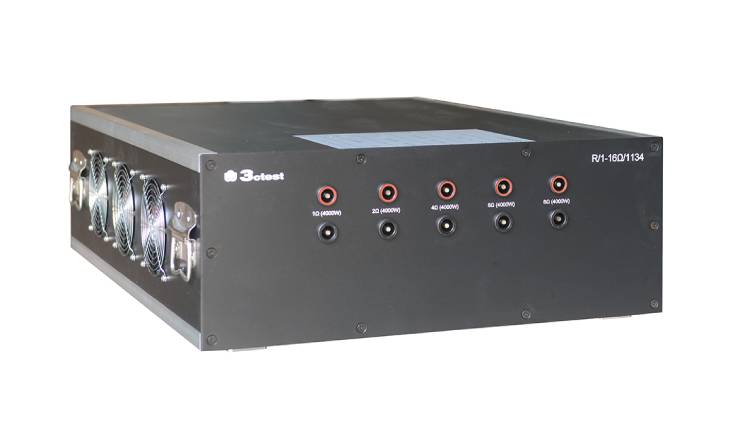

Adjustable Impedance Tester for Calibration R/1-16Ω/1134
Standard
- IEC 61000-4-11
- IEC 61000-4-34
Specifications
| Model | Impedance (Ω) | Power (W) |
|---|---|---|
| R/1-16/1134 | 1 – 16 adjustable | 4000 |
