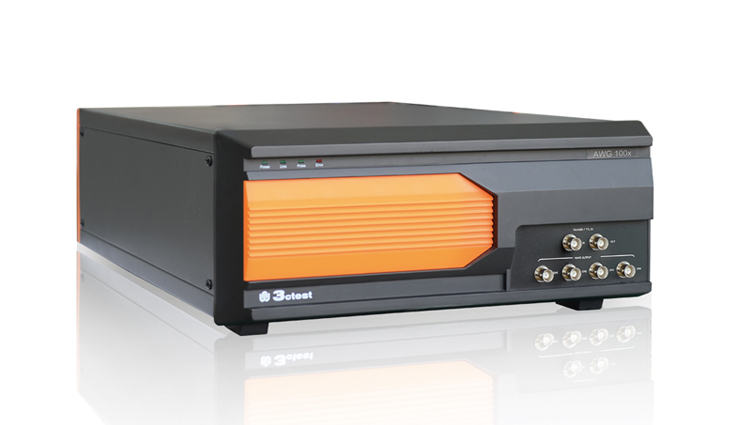

Arbitrary Wave Generator AWG 100X

Description

The test waveforms in automotive become more and more complicated, and more attention are paid to vehicle or components. Normal waveform generator can’t meet these requirements, especially, multiple waveforms superposition during one test is needed, AWG 100 arbitrary signal generator is the best solution.

1.Multiple sequence oscillator

• Signal output part is cordwood components, can be extended to max.4 channels.
• Can generate arbitrary waveforms: DC wave, ramps, sine, sweep frequency, exponential, frequency modulation/amplitude modulation sine wave, irregular and random arbitrary wave.
• Can generate variation waveform with voltage and time axis
• Can generate waveform timing sequence

2. Software for generating arbitrary waveform

Using excellent GUI arbitrary waveform generation software, it can easily generate complex waveforms with repeated voltage, time scanning.

Features：

•  Tests that meet the IS0 16750 standard and some factory standards;
•  Every oscillation channel has waveform arithmetic circuitry to output waveform with high resolution and accuracy;
•  By software control with Ethernet, represent kinds of variation phenomenon easily and really;
•  Ensure the synchronization deviation among channels to be less than 1 μs;
•  Waveform data (CSV) received from oscilloscope can be output with high accuracy.

Naming rules：

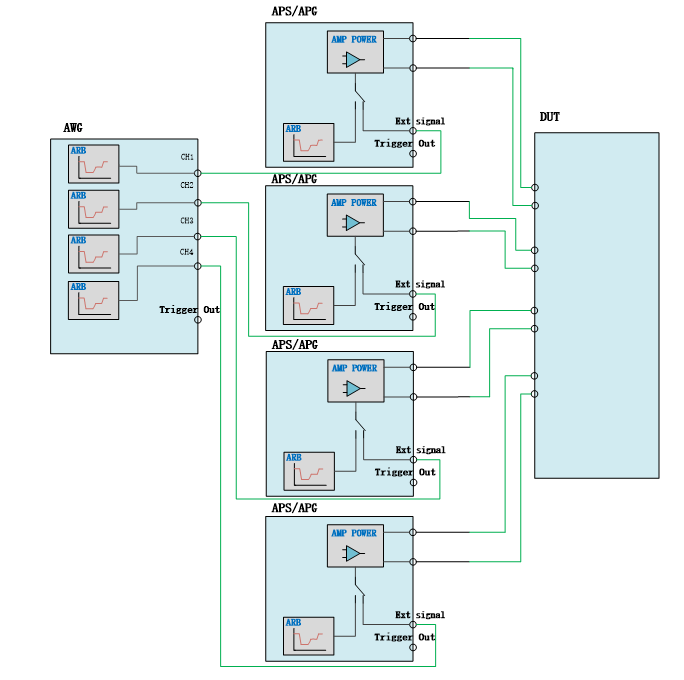

Test Connection Diagram：
