Artificial Main Network LISN ML300HVS

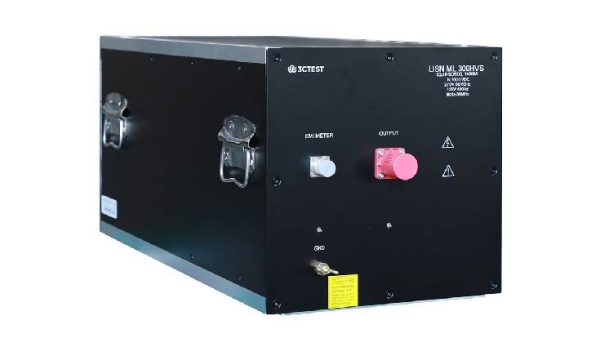

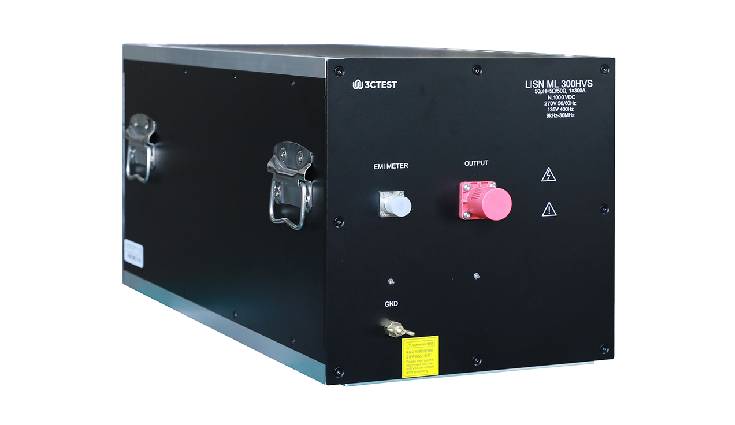

Model：LISN ML300HVS

The LISN ML 300HVS artificial power network is used to isolate power interference and provide the specified power impedance for the tested equipment (EUT).

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

Introduction：

The LISN ML 300HVS artificial power network is used to isolate power interference and provide the specified power impedance for the tested equipment (EUT) in the power conduction emission testing of GJB 151B and MIL-STD-461 standards. Its impedance characteristics fully meet the standard requirements. The maximum voltage of EUT port is DC 1000V,AC 270V 50Hz/60Hz,135V 400Hz,the maximum current is 300A. The EMI measurement port adopts a standard N-type interface.

Features：

  • Meets GJB 151B and MIL-STD-461 standards.
  • The test current can reach 300 A.
  • The EMI port adopts a standard N-type interface.

Standard

  • GJB 151B
  • MIL-STD-461

Specifications

Technical Parameters
Compliant With Standards GJB 151B, MIL-STD-461
Test Voltage Vmax DC 1000 V, AC 270 V 50/60 Hz, 135 V 400 Hz
Test Current Imax 300 A
Test Terminal N-type
Inductance 50 μH
Impedance 50 μH + 5 Ω‖50 Ω
Coupling Capacitance 0.25 μF
Impedance Frequency Range 9 kHz – 30 MHz
Chassis Size 310 mm × 310 mm × 685 mm (length × width × depth)
Instrument Weight About 36.5 kg
Ambient Temperature 15 ℃ ~ 35 ℃
Relative Humidity 45% ~ 75%
Atmospheric Pressure 86 kPa ~ 106 kPa
