Description
Artificial mains network LISN 3830 is designed according to RTCA DO-160G for relative EMC susceptibility / immunity tests.
Features
- 50Ω / 5 μH type;
- High capacity and can be customized;

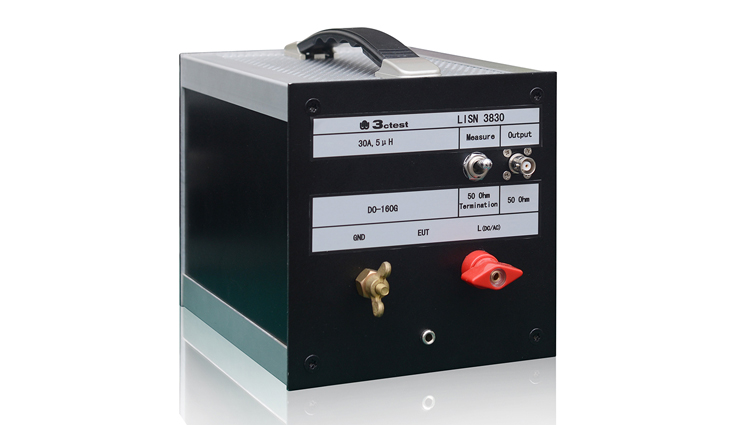

Artificial Mains Network LISN 3830
Standard
- RTCA/DO-160G
Specifications
| Technical Parameters | |
|---|---|
| Test Voltage | AC 380 V; DC 500 V
(Higher voltage can be customized) |
| Test Current | Max 30 A
(Higher current can be customized) |
| Type | 50Ω / 5 μH |
| Dimension | 250 x 160 x 160 |
| Weight | Approx. 2 kg |
