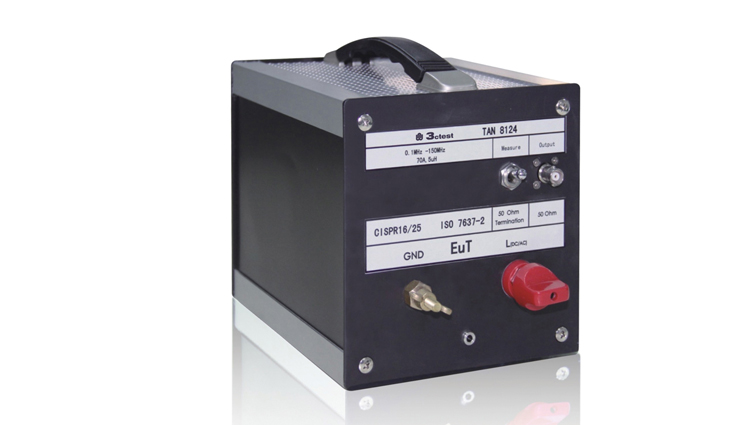

Artificial network TAN 8124

Model： TAN8124

TAN 8124 artificial network can be used as impedance of vehicle wire harness to test performance of electrical and electronic devices.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

TAN 8124 artificial network can be used as impedance of vehicle wire harness to test performance of electrical and electronic devices. It can be used to measure interference voltage of automotive, aircraft and ship. Frequency range is 1-150 MHz as per CISPR 25 and CISPR 16-1. According to ISO 7637-2, it can also measure transient disturbance. Built-in switchable 50 ohm load and 10 dB attenuator.

Features:

  •  In Compliance with CISPR 25 and ISO 7637-2
  •  Frequency Range:1-150 MHz
  •  Built-in switchable 50 ohm load

Standard

  • ISO 7637-2
  • CISPR25

Specifications

Technical Parameters
Frequency range 0.1- 110 （150） MHz
Max. Continuous current 70 A
Max. Current (short time) 100 A
Max. voltage（DC） 500 V
Max. voltage(AC 50/60 Hz) 250 V
Max. voltage(AC 400 Hz) 110 V
Impedance 5 μH || 50 Ω±10%
Dimension 220 x 160 x 170 mm
Weight 2.2 kg

Downloads

Adobe PDF

Artificial network TAN 8124 Datasheet

Language: English
