Automatic lightening surge simulator SG

Model：SG-968G

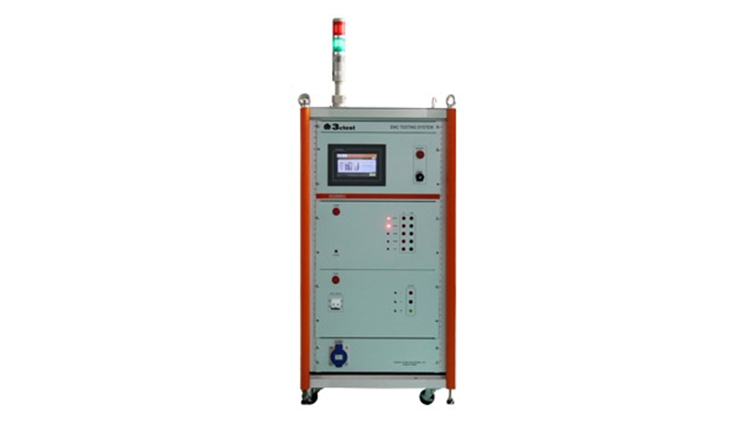

SG-968G automatic lightening surge simulator is based on 3ctest third-generation intelligent multi-functional simulator.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

SG-968G automatic lightening surge simulator is based on 3ctest third-generation intelligent multi-functional simulator. With programmable controller and computer technology, it simplifies system constitution and enhances system reliability during high voltage and current test. Color touch screen with good human-machine interface and easy operation makes test easier by only setting parameters on setting page. It is featured with high system integration, easy operation and save time. It can conduct TIA-968B surge test with four internal waveform module.

Features

  • Color touch screen 7 inch LCD
  • Automatic control system
  • Intelligent HV mains charging mode
  • Four test waveforms in one, standalone test
  • Contactless discharging switch, no discharging noise
  • Internal automatic single phase CDN
  • 22U standard 19 inch mobile cabinet installation
  • RS232 communication port for remote control

Standard

  • TIA-968B
  • FCC part 68

Specifications

10/160 Combination Wave Parameter
Output voltage 0.25～1.65 Kv ± 5％
Output current 31～220 A
Output voltage wave 6～10/160～260 μs
Output current wave 5～10/160～210 μs
10/560 Combination Wave Parameter
Output voltage 0.25～0.88 kV ± 5％
Output current 33.3～115 A
Output voltage wave 6～10/560～860 μs
Output current wave 5～10/560～760 μs
9/720 Combination Wave Parameter
Output voltage 0.25～1.65 Kv ± 5％
Output current 6.25～41.25 A
Output voltage wave 9±2.7/720±144 μs
Output current wave 5±1.5/320±64 μs
2/10 Combination Wave Parameter
Output voltage 0.25～2.75 Kv ± 5％
Output current 100～1100 A
Output voltage wave 1～2/10～19 μs
Output current wave 1～2/10～19 μs
Single Phase CDN Parameters
Decoupling waveform 2/10 μs
Decoupling amplitude Less than 6 kV / 3 kA
Coupling capacitance 18 μF
Decoupling inductance 1.5 mH
Coupling mains Single phase AC 220 V 50 Hz, 20 A
Test mode Automatic switch
General Parameters
Output polarity +/-
Number of discharging 1～999
Interval time 30～999 s
Trigger mode Automatic or manual, single trigger available
Current measurement Internal 0.005 V / A current sensor
Power supply AC 110 V / 220 V, ±10%, 50/60 Hz

（default AC 220 V）
Temperature 15~35 ℃
Humidity 45%-75%
Weight Approximately 130 kg
Ground resistance No more than 0.5 Ω
Dimension 19” /22U 600x800x1250 mm
