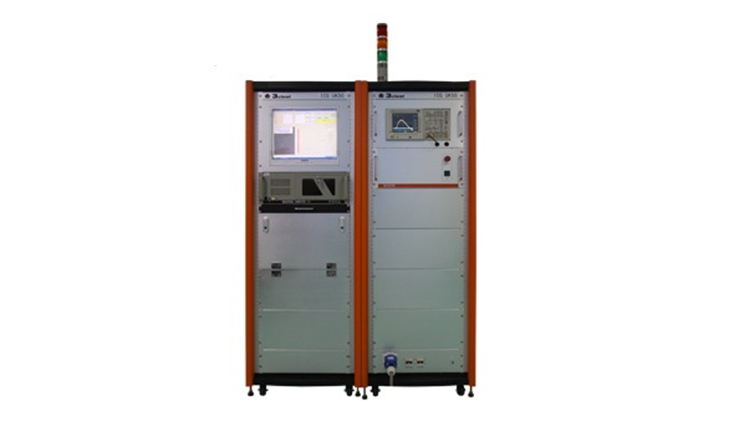

Automatic lightening surge test system ICG

Model: ICG UK50

Automatic lightening surge test system ICG UK50, it is featured with high system integration and intelligence and easy operation.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

Automatic lightening surge test system ICG UK50, it is featured with high system integration and intelligence and easy operation. Setting test requirements on parameters setting page, test can be conducted with one button. Internal components test fixture, it is easy to test. The system is mainly for performance test for surge protection device, such as TVS and gas discharging tube for II level and and III level test. It can be used in production line or product development. With standard 8/20μs/ and 10/1000μs/ surge impulse current waveform, it can also meet different test requirements with optional output waveforms and testing parameters.

  • test voltage up to 1000V for air discharge and contact discharge
  • Computer operation, test rate up to 7PCS/S
  • German fast high power semi-conductor discharging switch
  • identify DUT polarity automatically
  • internal temperature sensor
  • self-detection
  • internal DUT box and test clamps

Standard

  • IEC 61643-1
  • IEC 61051-1
  • GB/T 9043
  • YD-T 940

Specifications

Technical Parameters
Model ICG UK50
Input mains AC 220V 5KVA
Output waveform Current waveform: 10（-10%﹢100%）μs/1000

（±10%）μs
Optional waveform 8（±10%）/20（±10%）μs
Charging voltage 0.2~2000V
Current peak 3A～2000A
Output peak resolution ±5%
Number of test 1~99 adjustable
Interval time 1~99s adjustable
Single recycle duration 7s+ test duration
Control mode Automatic continuous test or manual single test
DUT polarity judgment Polarity can be identified automatically
General data
Power supply AC220V ± 10%，50/60Hz
Temperature 10-40℃，35%-85%RH（no condensation）
Dimension 1200×700×1800mm
Weight Approx. 500kg
Technical parameters
Surge pulse IEC 61051-1
Rise time 10μs-10%﹢100%
Duration 1000μs±10%
First measurement range 15A± 10% @1kV

30A± 10% @2kV
Second measurement range 200A± 10% @1kV

400A± 10% @2kV
Third measurement range 500A± 10% @1kV

1000A± 10% @2kV
Fourth measurement range 100A± 10% @1kV

2000A± 10% @2kV
