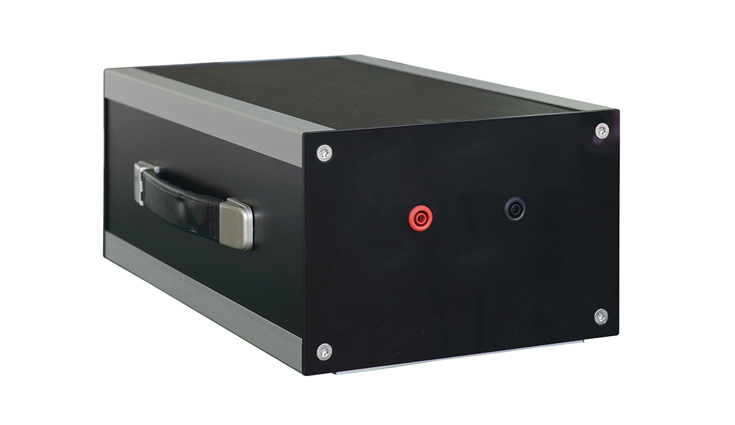

Broadband coupling transformer TPT-7637-4C100 is capable of transferring time-harmonic signals (sine waves) or pulse signals to EUT through magnetic coupling method, boasting distortion-free waveform, and physical isolation from the EUT etc. It is widely used in EMC conduction susceptibility / immunity tests.
| Technical Parameters | |
|---|---|
| Max Unsaturated Voltage | 100@f≥ 1 kHz |
| Max Current | 32 |
| EUT Max Current | 100 |
| Frequency Range | 1 kHz – 300 kHz |
| Dimension | 360 x 225 x 135 mm |
| Weight | 10 kg |
