Bulk Current Injection Probe BCIP-400

Model：BCIP-400

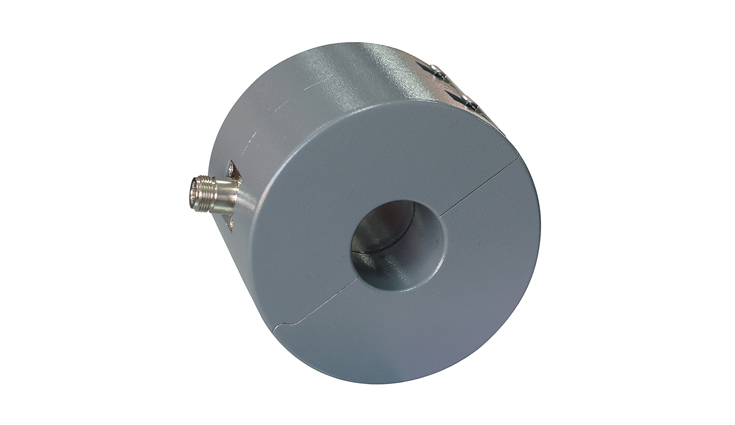

The BCIP-400 current injection clamp is a wideband current coupling device, which can transfer the time-harmonic signal current or pulse signal current to the test device (EUT).

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

The BCIP-400 current injection clamp is a wideband current coupling device, which can transfer the time-harmonic signal current or pulse signal current to the test device (EUT) through magnetic coupling. It has the characteristics of waveform distortion free and physical isolation from EUT. Meet the needs of the US military standard MIL-STD-461E/F/G CS114, CS115, CS116 test items, widely used in electromagnetic compatibility conduction sensitivity (immunity) test.

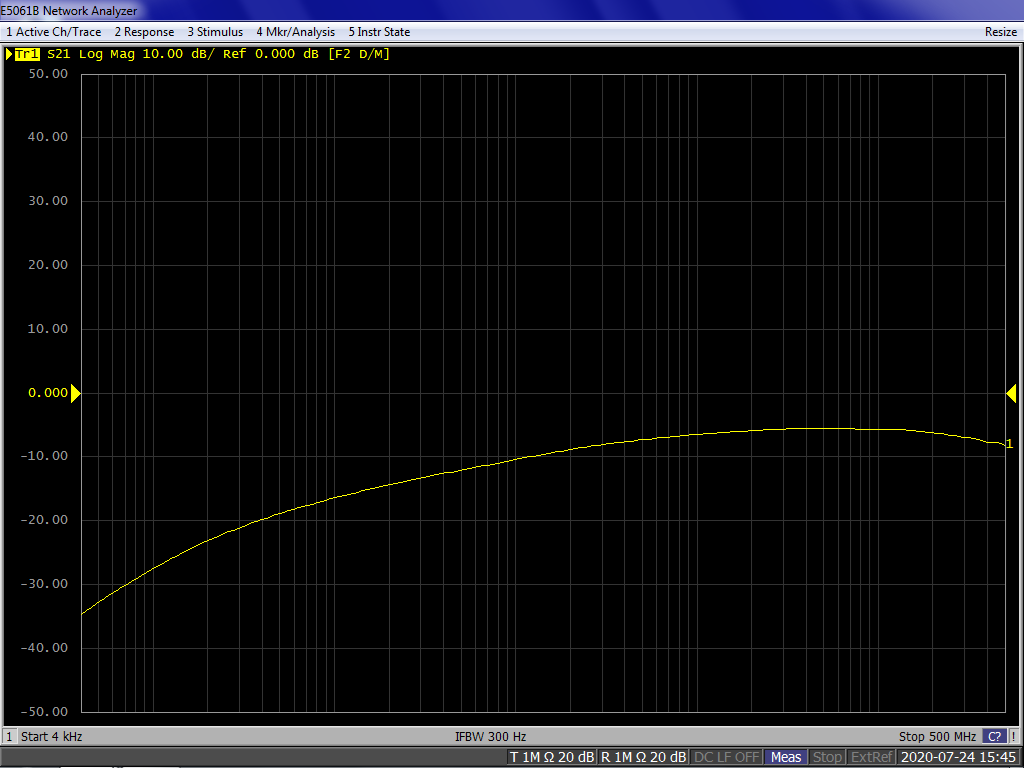

BCIP-400 current injection clamp insertion loss curve

Standard

  • MIL-STD-461E/F/G

Specifications

Technical Parameters
Frequency 4 kHz – 400 MHz
Maximum Input Power 100 W for 30 minutes
150 W for 15 minutes
200 W for 5 minutes
Connector Type N Type
Internal Diameter 40 mm
External Diameter 127 mm
Height 70 mm
Weight 2.6 Kg
