Cable Assemblies, Feedthrough Adapters

DC Cable Assemblies
BNC, TRX, SMA, SSMC, Banana, Alligator clip coaxial/triaxial cable assemlies for I-V/C-V, pulsed I-V measeurement.

High Power Tests
SHV, MHV, coaxial/triaxial cable assemblies for high power tests and measurements.

RF, mmW
Coaxail RF cable assemblies and waveguides.

In Stock 2-3 Weeks

With FREE shipping within the INDIA

In Stock

Description

SMA to TRX Cable Assembly CA-SMA-TRIAX-MTM-1M/(2M)/3M
Application	Low noise I-V measurement FemtoProbe cable assembly For connection of FemtoProbe to ultra high resolution semiconductor characterization systems.
Current Leakage	<10fA
Cable	1, 2 or 3m TRIAX cable available
Connector	SMA, male, gold coating side1 Triax, male, gold (contact finish) side2
Breakdown voltage	500V

SSMC to BNC Cable Assembly CA-SSMC-BNC-FTM-1M/(2M)/3M
Application	Low noise I-V measurement CPA-10 cable assembly For connection of CPA-10 to LCR or any other C-V measurement instrument.
Current Leakage	<10pA
Cable	1, 2 or 3m COAX cable available
Connector	SSMC, female, gold coating, side1 BNC, male, silver (contact finish) side2
Breakdown voltage	500V

SSMC to SMA Cable Assembly CA-SSMC-SMA-MTF-1M/(2M)/3M
Application	Ultra-fast I-V tests: pulsed I-V, transient I-V, and pulsed sourcing.
Current Leakage	<10pA
Cable	1, 2 or 3m COAX cable available
Connector	SSMC, male, gold coating side1 SMA, female, silver (contact finish) side2
Breakdown voltage	500V

SSMC to TRX Cable Assembly CA-SSMC-TRIAX-FTM-1M /(2M/3M)
Application	Low noise I-V measurement For connection of CPA-10 to ultra high resolution semiconductor characterization systems.
Current Leakage	<10fA
Cable	1, 2 or 3m TRIAX cable available
Connector	SSMC, female, gold coating side1 BNC, male, gold (contact finish) side2
Breakdown voltage	500V

BNC to BNC Cable Assembly CA-BNC-BNC-MTM-1M /(2M/3M)
Application	Extended connection, in series. Low noise I-V measurement.
Current Leakage	<10pA
Cable	1, 2 or 3m COAX cable available
Connector	BNC, male, silver (contact finish) side1 BNC, male, silver (contact finish) side2
Breakdown voltage	500V

BNC to TRX Cable Assembly CA-BNC-TRIAX-MTM-1M /(2M/3M)
Application	Extended connection, between series. Low noise I-V measurement.
Current Leakage	<10fA
Cable	1, 2 or 3m TRIAX cable available
Connector	BNC, male, silver (contact finish) side1 Triax, male, gold (contact finish) side2
Breakdown voltage	500V

TRX to TRX Cable Assembly CA-TRIAX-TRIAX-MTM-1M /(2M/3M)
Application	Extended connection, in series. Low noise I-V measurement.
Current Leakage	<10fA
Cable	1, 2 or 3m TRIAX cable available
Connector	Triax, male, gold (contact finish) side1 Triax, male, gold (contact finish) side2
Breakdown voltage	500V

BNC to Alligator Clip Cable Assembly CA-BNC-AC-MTM-1M /(2M/3M)
Application	Adapts BNC to alligator clip end
Current Leakage	<10nA
Cable	1, 2 or 3m COAX cable available
Connector	BNC, male, silver (contact finish) side1 Alligator clip (2 each), gold (contact finish) side2
Breakdown voltage	500V

TRX to Alligator Clip Cable Assembly CA-TRX-AC-MTM-1M /(2M/3M)
Application	Adapts TRX connector to alligator clip end
Current Leakage	<10nA
Cable	1, 2 or 3m TRIAX cable available
Connector	Triax, male, gold (contact finish) side1 Alligator clip (3 each), male, nickel (contact finish) side2
Breakdown voltage	500V

BNC to Banana Plug Cable Assembly CA-BNC-BA-MTM-1M /(2M/3M)
Application	Adapts BNC to banana plug end
Current Leakage	<10nA
Cable	1, 2 or 3m COAX cable available
Connector	BNC, male, silver (contact finish) side1 Banana plug (2 each), nickel (contact finish) side2
Breakdown voltage	500V

TRX to Banana Plug Cable Assembly CA-TRX-BA-MTM-1M /(2M/3M)
Application	Adapts TRX connector to banana plug end
Current Leakage	<10nA
Cable	1, 2 or 3m TRIAX cable available
Connector	Triax, male, gold (contact finish) side1 Banana plug (3 each), nickel (contact finish) side2
Breakdown voltage	500V

Pheonix connector to BNC CA-BNC-2612B-MTM-2M
Application	Keithley 2612B Cable Assembly
Current Leakage	<10pA
Cable	COAX cable, 2 meters
Connector	BNC, male, silver (contact finish) side1 Pheonix connector, side2
Breakdown voltage	500V

High Current, High Voltage Cable Assemblies

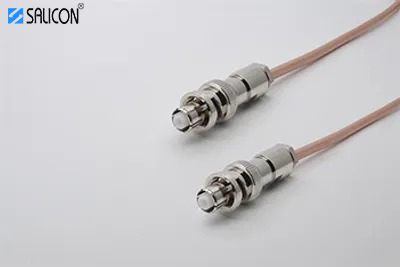

SHV to SHV Cable Assembly CA-SHV-SHV-FTF-1M /(2M/3M)
Application	Extended connection for SHV connector. High voltage, high current tests.
Maximum current	120mA
Maximum voltage	5000V
Cable	1, 2 or 3m COAX cable available
Connector	SHV, male, gold (contact finish) side1 SHV, male, gold (contact finish) side2
Breakdown voltage	>5000V

RF, mmW cables, waveguides
RF, mmW cables, waveguides
Application	High-performance RF, multi-contact/mixed signal measurement, Single-ended broadband/mmWave, THz, source/load pull, RF noise measurement
Cable*	Semi rigid coax cable or waveguides
Connector	Vary from frequency bands
*Please contact us for detailed information on cables and connectors.
