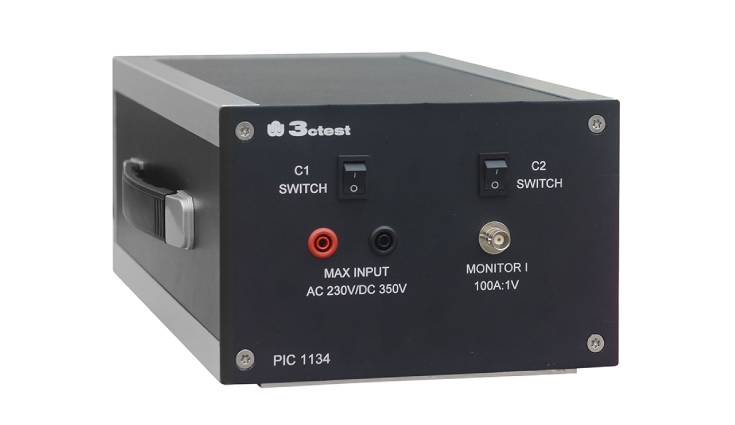

PIC 1134 is designed according to IEC 61000-4-11, IEC 61000-4-29 and IEC 61000-4-34 for the calibration of peak impulse current during the voltage dips. The equipment can switch over capacitance of 1,700 μF, 3,400 μF and 5,100 μF.
Equipment Connection Diagram:
| Technical Parameters | |
|---|---|
| Drive Capacity Of Peak Impulse Current (No Requirement On Voltage Variation) | Max 500 A (power source 220 V – 240 V); Max 250 A (power source 100 V – 120 V); |
| Capacitance | 1,700 μF; |
| Discharging Resistor | 4700 Ω |
| Current Monitor Output | 100 A：1 V |
| Max. Rated Voltage | AC 230 V, DC 350 V |
| Dimension | 225 mm (L)*135 mm (H)*369 mm (D) |
| Weight（kg） | Approx. 6 kg |
