Calibration Kit for Capacitive Coupling

Model：CA-CCC

Calibration kit for capacitive coupling clam CA-CCC is the calibration device of Capacitive Coupling Clamp (CCC), designed according to the latest international standards.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

CA-CCC is the calibration device of Capacitive Coupling Clamp (CCC), designed according to the latest international standards.

Calibration Setup:

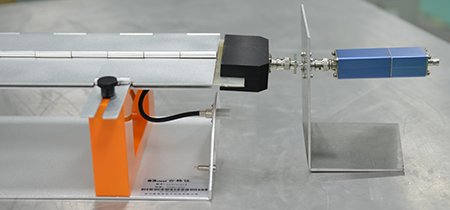

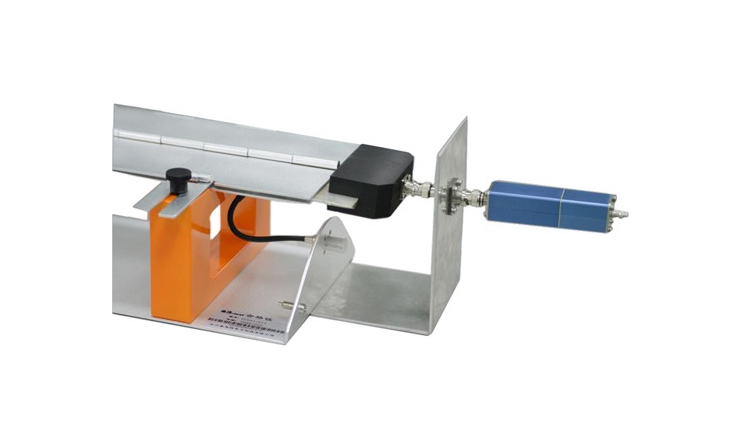

Place the transducer plate inside the CCC, and align it with the bottom of the CCC. Connect the transducer plate with the low-impedance adaptor AD-CA-CCC then the 50 Ω attenuator. The adaptor ensures that the attenuator be properly connected to the reference ground, and holds the attenuator over 100 mm above the height of the CCC.
The distance between the transducer plate and the attenuator shall be less 0.1 m.

Calibration Process:
Calibration of the Capacitive Coupling Clamp is performed through setting of the open-circuit voltage of the EFT/B generator. The output voltage of the 50 Ω attenuator should be 1,000 V.

Standard

  • IEC 61000-4-4
  • IEC 61000-4-18
  • GB/T 17626.18
  • GB/T 17626.4
  • EN 61000-4-4
  • EN61000-4-18

Specifications

General Parameters
Connector BNC;
Input Voltage Max 5,000 V;
Dimension of Insulating Material 1100 ± 5 mm × 130 ± 1 mm
Dimension of Copper Plate 1050 ± 5 mm × 120 ± 1 mm;

Plate thickness < 0.5 mm
Operating Temp. (23±5)℃
Weight Approx 300 g
Operating Humidity 35 – 80%
Operating Air Pressure 60 – 106 kPa

Downloads

Adobe PDF

Calibration Kit for Capacitive Coupling Clam CA-CCC Series Datasheet

Language: English
