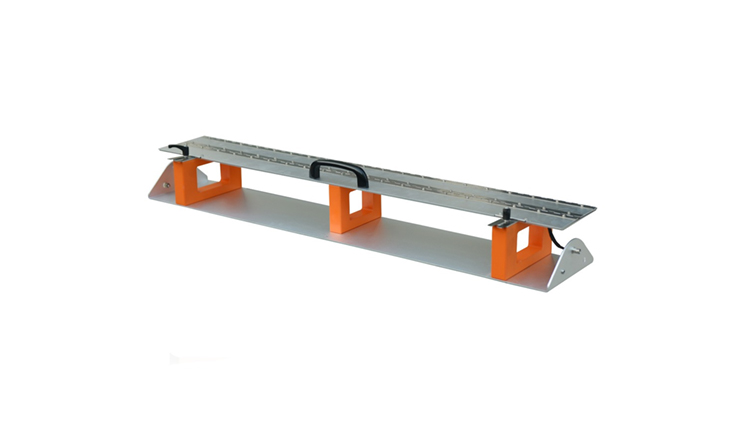

CCC 100 will couple EFT/Burst to I/O lines as per Europe and international immunity test standards. Discrete capacitors can’t couple interference signal flow, so they usually can’t be used to couple EFT/Burst to signal lines. But this can be achieved by Capacitance coupling clamp.
| Parameters | |
|---|---|
| Model | CCC100: For 5 kV pulse voltage
CCC 100(8kV): For ＞5 kV pulse voltage |
| Coupling capacitance | 100 pF～1000 pF DC5 kV |
| Insulating ability | ＞5 kV (1.2/50 μs) |
| Dimension | 1040×140×110 mm |
Model：EMID 1M
The EMID 1M is used to decouple the interference signals in the EFT/Bursts immunity test as per IEC 61000-4-4 and GB/T 17626.4.
Model：EMID 1M
The EMID 1M is used to decouple the interference signals in the
...
Model：TFB 500/1000
TFB 500/1000 are attenuators, capable of reducing the power of EFT/B without appreciably distorting its waveform.
Model：TFB 500/1000
TFB 500/1000 are attenuators, capable of reducing the power
...
Model：EFT 700G&EFTN 70300T
EFT 800x series including EFT 800G(source output), EFT 800S (built-in single-phase coupling/decoupling networks) and EFT 800T (built-in three-phase coupling/decoupling networks) are newly designed intelligent EFT/Burst simulators
Model：EFT 700G&EFTN 70300T
EFT 800x series including EFT 800G(source outpu
...
Model：EFT 700x
EFT 700x series intelligent Electrical Fast Transient Simulator has been built-in fully automatic single-phase or three-phase power line coupling/decoupling network.
Model：EFT 700x
EFT 700x series intelligent Electrical Fast Transient Simulator
...
