CDN Series Operating Duty Power Supply

Model：CDN 1500

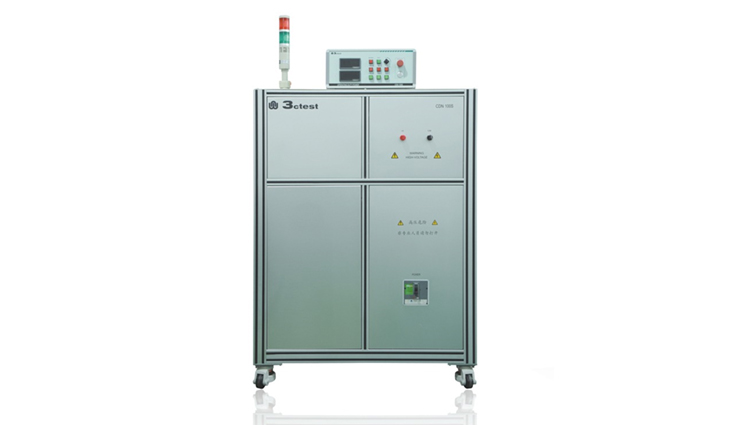

CDN 1500 heavy current follow current power supply can offer short-time heavy current to SPD and filter the surge signals at the same time to protect the power supply port from the interference of surge signal.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

SPD (surge protection device) would leak surge signals of lightning stroke, temporary overvoltage etc. in its normal operation, however, temporary impedance will decrease and short circuit may occur in the process of leakage, which may cause heat or fire and lead to incalculable loss. CDN 1500 heavy current follow current power supply can offer short-time heavy current to SPD and filter the surge signals at the same time to protect the power supply port from the interference of surge signal. The maximum follow current is 1500 A.

Characteristic:

  • Electrical automatic control power supply switching, large breaker is used to control the power supply.
  • Arrestor overvoltage protection, over current relay double protection.
  • Urgent protection button & power failure alarm function.
  • 100 ms delay output overload protection.
  • Use for AC current reverse filtering of 200 kA, 8/20 μs waveform impulse current operating duty test.
  • Internal discharging gap protection.

Standard

Specifications

Technical parameters
Input Power Supply 380 V AC
Output Voltage 0 V ~550 V
Output Voltage Waveform Distortion Rate ≤3%
Short-Circuit Output Current Less than 1500 A（effective value）
Output Current 1500 A 100 ms
Decoupling Network Inductance 150 mH/100 kV
Decoupling Network Capacitor 1×18 μF+2×9 μF（Double tube, be capable of operation in serial and parallel）
Surge Withstanding Capability On Load Side Ip:5 kA ~200 kA;

Phase angle ：0~360°

Uc:500 V 5 A
Deciding Follow Current Imax:5 kA ~150 kA;Iimp:1 kA ~35 kA;

Phase angle：0~360°

Uc:500 V 1500 A
Preconditioning Test In:5 kA ~150 kA;Ipeak:1 kA ~15 kA;

Phase angle ：0~360°,

Uc:500 V 1500 A
Level Ⅰ& Level Ⅱ Operating Duty Tests Imax:5 kA ~100 kA;Iimp:1 kA ~15 kA;

Phase angle ：0~360°

Uc:550 V 5 A
Work Mode Switching manually
General Parameters
Power supply AC 380 V ± 10% single-phase
Ambient Temperature 15℃ – 35℃
Dimension 2800 mm (L) x2500 mm (W) x2200 mm(H)
Weight Approx. 2000Kg

Downloads

Adobe PDF

CDN Series Operating Duty Power Supply CDN 1500 Series Datasheet

Language: English
