CDNs for Test of Immunity to Common-mode Conducted Disturbances

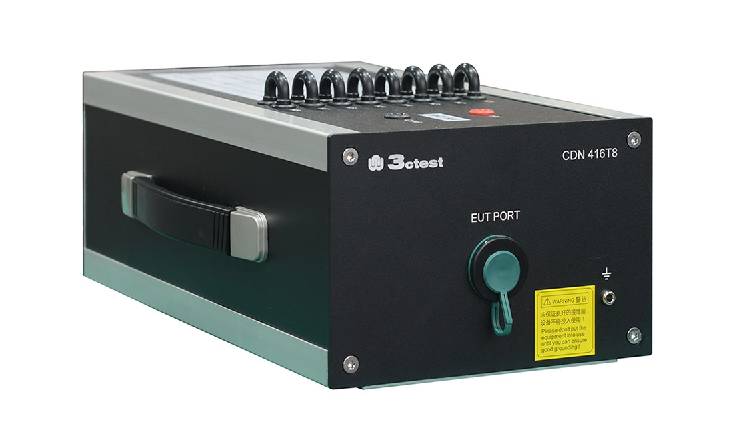

Model：CDN 416T8

The CDNs for Test of Immunity to Common-mode Conducted Disturbances CDN 416T8 is designed as per IEC 61000-4-16:2015 and used to test the immunity to conducted.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

The coupling/decoupling networks CDN 416T8 is designed according to IEC 61000-4-16:2015 and applied to 8-line tests for immunity to conducted, common-mode disturbances in the frequency range 0 Hz to 150 Hz. Its coupling immunity voltage up to 50 V, and transmission rate is 1000 MB.

Features：

  • Transmission rate: 1000 MB
  • Coupling Frequency: DC-150 kHz

Standard

  • IEC 61000-4-16:2015

Specifications

Technical Parameters
Coupling Frequency DC/15 Hz – 150 kHz, CW wave
Coupling Voltage 50 V
Coupling Mode 8-line common mode (to ground simultaneously)
Coupling Components 4.7 μF capacitor
Coupling Resistance 800 Ω * 2
Decoupling Inductance 8 x 38 mH
Common-mode Decoupling >60 dB
Working Voltage Max. 150 V AC / 200 V DC
Working Current Max. 1 A
General Parameters
Weight Approx. 10 kg
Dimension 360 mm (L) × 220 mm (W) × 135 mm (H)
Enclosure Material Aluminum
Ambient Temperature 15°C – 35°C (operating condition)
Relative Humidity 45% – 75% (operating condition)

Downloads

Adobe PDF

CDNs for Test of Immunity to Common-mode Conducted Disturbances Series Datasheet

Language: English
