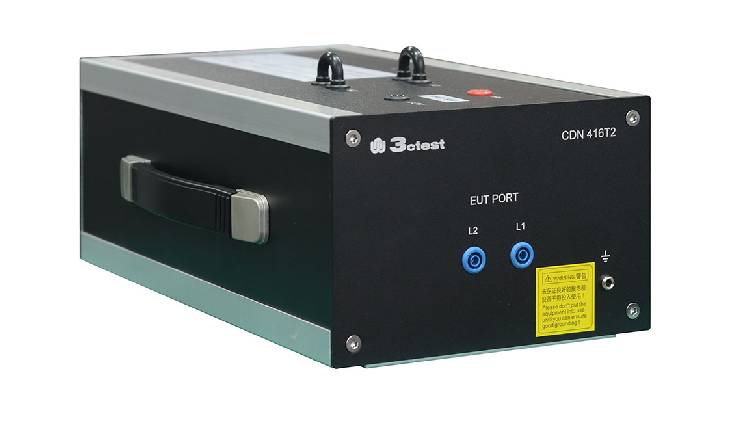

CDNs for Test of Immunity to Common-mode Conducted Disturbances CDN 416T2

Model：CDN 416T2

The coupling/decoupling networks CDN 416T2 is designed according to IEC 61000-4-16:2015 and applied to 2-line tests for immunity to conducted.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

The coupling/decoupling networks CDN 416T2 is designed according to IEC 61000-4-16:2015 and applied to 2-line tests for immunity to conducted, common-mode disturbances in the frequency range 0 Hz to 150 Hz. Its coupling immunity voltage up to 50 V, and transmission rate is 10 MB.

Features

  • Transmission rate: 10 MB
  • Coupling Frequency: DC-150 kHz
  • Banana head terminal signal injection.

Standard

  • IEC 61000- 4-16

Specifications

Technical Parameters
Coupling Frequency DC/15 Hz – 150 kHz, CW wave
Coupling Voltage 50 V
Coupling Mode 2-wire common mode (simultaneously to ground)
Coupling Device 4.7 μF capacitor
Coupling Resistance 200 Ω x 2
Decoupling Inductance 2 x 38 mH
Working Voltage Maximum 150 V AC / 200 V DC
Working Current Maximum 1 A
AE/EUT Port Type 4 mm banana head
Signal Injection Port Type 4 mm banana head
General Parameters
Weight Approximately 10 kg
Size 360 mm x 220 mm x 135 mm (length x width x height)
Shell Material Aluminum material
Ambient Temperature 15 °C – 35 °C
Relative Humidity 45% – 75%

Downloads

Adobe PDF

CDNs for Test of Immunity to Common-mode Conducted Disturbances CDN 416T2 Series Datasheet

Language: English
