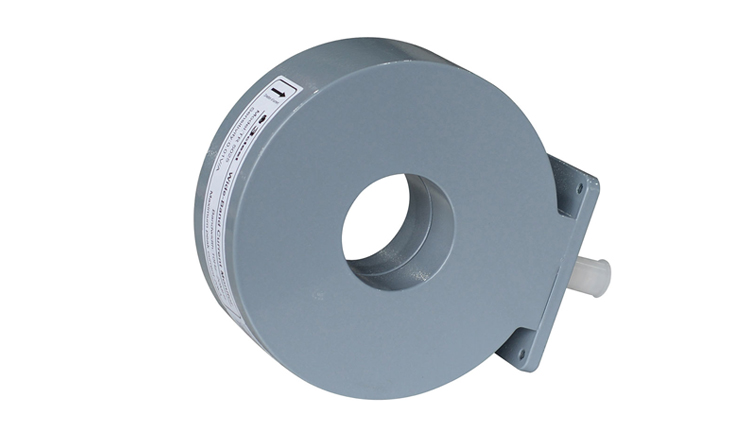

CM 0302M Wide-band Current Monitor

Model：CM 0302M

The CM 0302M is used for measuring alternating current and time domain pulse current in the frequency range from 5 Hz to 2 MHz.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

The CM 0302M is used for measuring alternating current and time domain pulse current in the frequency range from 5 Hz to 2 MHz. It features no waveform distortion and physically isolation with current carrier and transmits time harmonics current or pulse current to recording instruments in the form of voltage. It is capable of meeting the measurement requirement of time harmonics signal with frequency of     2 MHz or below and transient pulse with rise time less than 175 ns. Widely used in EMC conductive sensitivity (immunity) test.

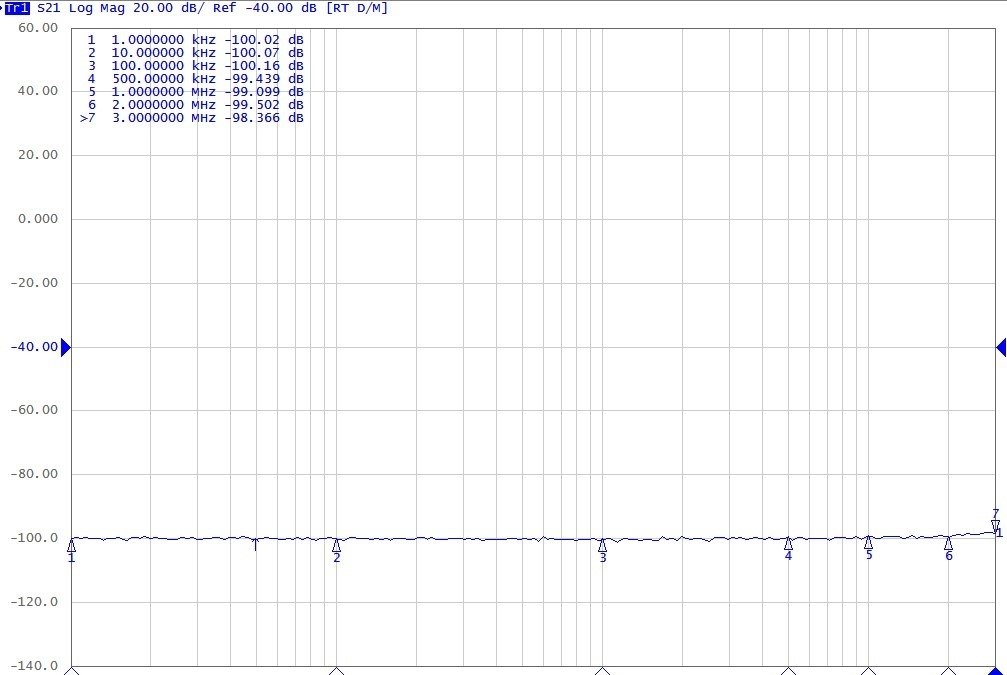

s21 curve of CM 0302M

Standard

Specifications

Technical Parameters
Sensitivity 0.001 V/A High Frequency 3 dB cut-off 2 MHz
Output Resistance 50 Ω Inner Diameter 40 mm
Max. Peak Current 200,000 A Outer Diameter 116 mm
Max. rms Current 520 A Thickness 40 mm
Rise Time 175 ns Interface Type BNC type
Current Time Product 10 A·s Operating Temperature 0 ℃ ~ 65 ℃
Low Frequency 3 dB cut-off 5 Hz Weight 1 kg
