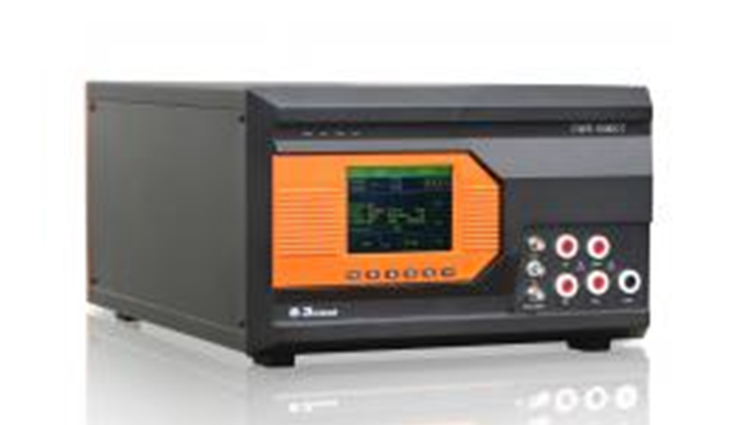

Combination Wave Lightning Surge

Model：CWS 1000CT

CWS 1000CT combination wave lightning surge simulator is a high-end test equipment specially designed for simulating surge pulse interference, which can generate high-voltage pulse waveforms of 1.2/50μs, 8/20μs, 10/700μs and 5/320μs.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

CWS 1000CT combination wave lightning surge simulator is a high-end test equipment specially designed for simulating surge pulse interference, which can generate high-voltage pulse waveforms of 1.2/50μs, 8/20μs, 10/700μs and 5/320μs. Meet the requirements of IEC 61000-4-5 and other standards.
The performance of CWS 1000CT fully meets the requirements of EU CE certification and CCC certification for the immunity test of the equipment under test, and the surge test can be carried out on the equipment under test through an external coupling/decoupling network.

Features：

  • 5.7-inch colorful touch screen.
  • Voltage can reach 10 kV.
  • Generate 1.2/50μs, 8/20μs, 10/700μs, 5/320μs high voltage pulse waveforms; As per IEC 61000-4-5.
  • Display peak voltage / current on LCD.
  • Test sequencing and scheduling, easy test setting.
  • Equipped External three-phase coupling /decoupling network.
  • Equipped external magnetic field coil and accessory modules to meet IEC 61000-4-9 TEST.

Standard

  • IEC 61000-4-5
  • IEC 61643-1
  • GB/T 17626.5
  • GB/T 16927.1
  • ITU-T K.21
  • ITU T K.44

Specifications

Technical Parameters 1.2/50 μs、8/20 μs
Test Voltage Range 0.5 V ~ 10 V ±10%
Voltage Waveform Front time: 1.2 μs±30%，

Pulse width: 50 μs±20%
Test Current Range 0.25 kA ~ 5 kA ±10%(2 ohm)
Current Waveform Front time: 8 μs±20%，

Pulse width: 20 μs±20%
Source Impedance 2 ohm, and 12 ohm to select
Polarity +, -, +/-
Pulse Period 6 s ~ 180 s (the min. depends on the test voltage)
No. Of Tests 1 ~ 999
Triggering Method Automatic / manual / external triggering
Peak voltage monitor BNC output : 1000 V:1 V; LCD display
Peak current monitor BNC output : 100 A:1 V; LCD display
Test mode Test parameter scheduling setting
Technical Parameters 10/700 μs、5/320 μs
Test Voltage Range 0.5 V ~ 10 V ±10%
Voltage Waveform Front time: 10 μs±30%，

Pulse width: 700 μs±20%
Current Waveform Front time: 5 μs±20%，

Pulse width: 320 μs±20%
Source Impedance 15 ohm, and 40 ohm to select
Polarity +, -, +/-
Pulse Period 11 s ~ 180 s (the min. depends on the test voltage)
No. Of Tests 1 ~ 999
Triggering Method Automatic / manual / external triggering
Test mode Test parameter scheduling setting
Technical Parameters 1.2/50 μs
Test Voltage Range 0.5 V ~ 10 V ±10%
Voltage Waveform Front time: 1.2 μs±30%，

Pulse width: 50 μs±20%
Source Impedance 500 ohm
Polarity +, -, +/-
Pulse Period 6 s ~ 180 s (the min. depends on the test voltage)
No. Of Tests 1 ~ 999
Peak voltage monitor BNC output : 1000 V:1 V; LCD display
Triggering Method Automatic / manual / external triggering
Test mode Test parameter scheduling setting
General Parameters
Display Screen 5.7-inch TFT touch screen
Operating Power Supply AC 110 V / 220 V±10%, 50 Hz / 60 Hz (AC 220 V in China)
Fuse 6 A
Max. Power 200 W
User storage space Infinite(PC)
Communication Mode Ethernet LAN、RJ45
Operating State Indicators Front panel LED, LCD
Malfunction Detection Malfunctions will be shown on LCD while the operation will be stopped.
Monitor output way 1 meter coaxial-line
Dimension 6 U
Weight Approx. 55 kg
Ambient Temperature 15 ℃ ~ 35 ℃
Relative Humidity 45% ~ 75%
Atmospheric Pressure 86 kPa ~ 106 kPa

Downloads

Adobe PDF

Combination Wave Lightning Surge Simulator CWS 1000CT Series Datasheet

Language: English
