Combination Wave Lightning Surge

Model：CWS 800CT

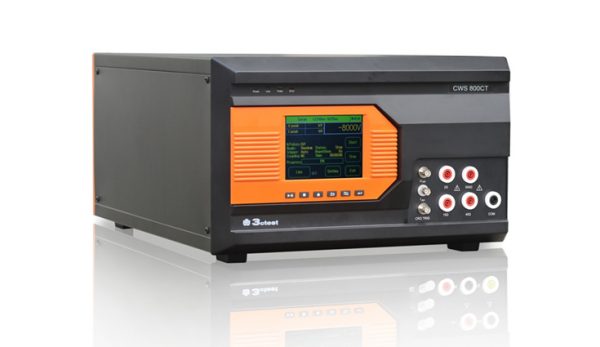

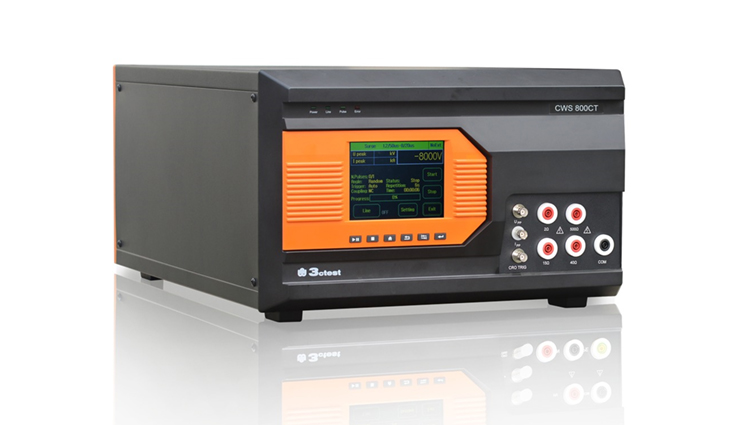

CWS 800CT combination wave lightning surge simulator is a high-end test equipment specially designed for simulating surge pulse interference, which can generate high-voltage pulse waveforms of 1.2/50μs, 8/20μs, 10/700μs and 5/320μs.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

CWS 800CT combination wave lightning surge simulator is a high-end test equipment specially designed for simulating surge pulse interference, which can generate high-voltage pulse waveforms of 1.2/50μs, 8/20μs, 10/700μs and 5/320μs. Meet the requirements of IEC 61000-4-5 and other standards.
The performance of CWS 800CT fully meets the requirements of EU CE certification and CCC certification for the immunity test of the equipment under test, and the surge test can be carried out on the equipment under test through an external coupling/decoupling network.

Features：

  • 5.7-inch colorful touch screen.
  • Voltage can reach 8 kV.
  • Generate 1.2/50μs, 8/20μs, 10/700μs, 5/320μs high voltage pulse waveforms; As per IEC 61000-4-5.
  • Display peak voltage / current on LCD.
  • Test sequencing and scheduling, easy test setting.
  • Equipped External three-phase coupling /decoupling network.
  • Equipped external magnetic field coil and accessory modules to meet IEC 61000-4-9 TEST.

Standard

  • IEC 61000-4-5
  • IEC 61643-1
  • GB/T 17626.5
  • GB/T 16927.1
  • ITU-T K.21
  • ITU T K.44

Specifications

Technical Parameters 1.2/50 μs、8/20 μs
Test Voltage Range 0.5 kV ~ 8 kV ±10%
Voltage Waveform Front time: 1.2μs ±30%;

Pulse width: 50μs ±20%
Test Current Range 0.25 kA ~ 4 kA ±10%(2 ohm)
Current Waveform Front time: 8μs ±20%;

Pulse width: 20μs ±20%
Source Impedance 2 ohm, and 12 ohm to select
Output Polarity +, -, +/-
Pulse Period 6 s ~ 180 s (the min. depends on the test voltage)
No. Of Tests 1 ~ 999
Peak voltage monitor BNC output : 1000 V:1 V; LCD display
Peak current monitor BNC output : 500 A:1 V; LCD display
Triggering Method Automatic / manual / external triggering
Test mode Test parameter scheduling setting
Technical Parameters 10/700 μs、5/320 μs
Test Voltage Range 0.5 kV ~ 8 kV ±10%
Voltage Waveform Front time: 10μs ±30%;

Pulse width: 700μs ±20%
Current Waveform Front time: 5μs ±20%;

Pulse width: 320μs ±20%
Source Impedance 15 ohm, and 40 ohm to select
Output Polarity +, -, +/-
Pulse Period 11 s ~ 180 s (the min. depends on the test voltage)
No. Of Tests 1 ~ 999
Triggering Method Automatic / manual / external triggering
Test mode Test parameter scheduling setting
Technical Parameters 1.2/50 μs
Test voltage range 0.5 kV–8 kV± 10%
Voltage Waveform Front time: 1.2μs ±30%; Pulse width: 50μs ±20%
Source Impedance 500 ohm
Output Polarity +, -, +/-
Pulse Period 6 s ~ 180 s (the min. depends on the test voltage)
No. Of Tests 1 ~ 999
Peak voltage monitor BNC output : 1000 V:1 V; LCD display
Triggering Method Automatic / manual / external triggering
Test mode Test parameter scheduling setting
General Parameters
Display 5.7-inch colorful touch screen
Operating Power Supply AC 110 V / 220 V±10%, 50 Hz / 60 Hz (AC 220 V in China)
Fuse 6 A
Max Power 200 W
User storage space Infinite(PC)
Communication Method Ethernet and RJ 45
Operating State Indicators Front panel LED, LCD
Malfunction Detection Malfunctions will be shown on LCD while the operation will be stopped.
Monitor output way 1 meter coaxial-line
Dimension 6 U
Weight Approx. 55 kg
Operating Temp. 15℃ ~ 35℃
Operating Humidity 45% ~ 75%
Operating Air Pressure 86kPa ~ 106kPa
