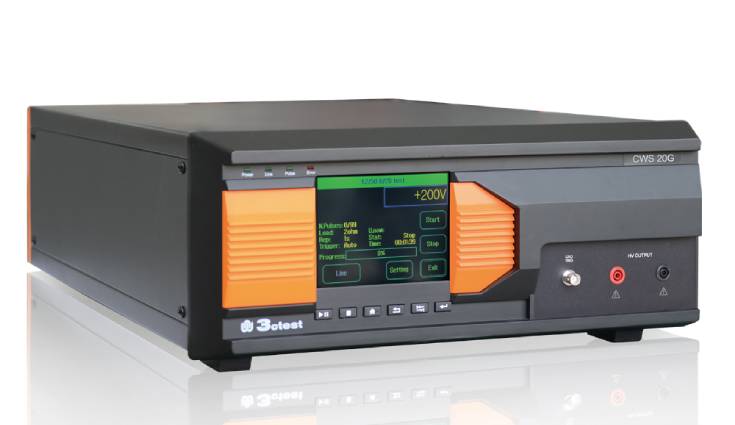

Combination Wave Surge Generator CWS

Model：CWS 20G

The combination wave surge generator CWS 20G is designed according to IEC/EN 61000-4-5, IEC 60950, IEC 62305-4, IEC 61643-1, ITU-T K17, ITU-T K21 and customer’s requirement.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

The CWS 20G is designed according to IEC/EN 61000-4-5, IEC 60950, IEC 62305-4, IEC 61643-1, ITU-T K17, ITU-T K21 and customer’s requirement. It is capable of generating multiple waveforms, including 1.2/50 μs and 8/20 μs combination wave, 1.2/50 μs voltage wave, 5/50 μs voltage wave, 10/100 μs voltage wave, 10/200 μs voltage wave, 10/350 μs voltage wave and 10/700 μs, 5/320 μs combination wave.
It is mainly used in inrush voltage test performed on arrester resistor, integrated chip and communication equipment etc.

Features：

  • 5.7” color touch screen front panel operation.
  • Generating multiple pulse waveforms.
  • Test sequencing is available and easy operation.
  • With Ethernet and RJ45 interface.

Standard

  • IEC 61000-4-5
  • IEC 60950
  • IEC 61643-1
  • EN 61000-4-5
  • ITU-T K.21
  • IEC 62305-4
  • ITU-T K17

Specifications

1.2/50 μs, 8/20 μs Combination Wave
Voltage (Open-circuit) 5 V ~ 200 V（±5% ±1 V）
Front Time of Voltage Wave 1.2 μs ±30%
Time to half-value of Voltage Wave 50 μs ±20%
Current (Short-circuit) 2.5 A ~ 100 A（±5% ±0.5 A）
Impedance 2 Ω
Front Time of Current Wave 8 μs ±20%
Time to half-value of Current Wave 20 μs ±20%
Standard IEC 61000-4-5
1.2/50 μs Voltage Wave
Voltage (Open-circuit) 5 V ~ 200 V（±5% ±1 V）
Front Time of Voltage Wave 1.2 μs ±30%
Time to half-value of Voltage Wave 50 μs ±20%
Impedance 40 Ω
Standard IEC 60950, ITU-T K21
5/50 μs Voltage Wave
Voltage (Open-circuit) 5 V ~ 200 V（±5% ±1 V）
Front Time of Voltage Wave 5 μs ±30%
Time to half-value of Voltage Wave 50 μs ±20%
Impedance 40 Ω
Standard Customized
10/100 μs Voltage Wave
Voltage (Open-circuit) 5 V ~ 200 V（±5% ±1 V）
Front Time of Voltage Wave 10 μs ±20%
Time to half-value of Voltage Wave 100 μs ±20%
Impedance 40 Ω
Standard Customized
10/200 μs Voltage Wave
Voltage (Open-circuit) 5 V ~ 200 V（±5% ±1 V）
Front Time of Voltage Wave 10 μs ±20%
Time to half-value of Voltage Wave 200 μs ±20%
Impedance 40 Ω
Standard Customized
10/350 μs Voltage Wave
Voltage (Open-circuit) 5 V ~ 200 V（±5% ±1 V）
Front Time of Voltage Wave 10 μs ±20%
Time to half-value of Voltage Wave 350 μs ±20%
Impedance 40 Ω
Standard IEC 62305-4, IEC 61643-1
10/700 μs, 5/320 μs Combination Wave
Voltage (Open-circuit) 5 V ~ 200 V（±5% ±1 V）
Front Time of Voltage Wave 10 μs ±20%
Time to half-value of Voltage Wave 700 μs ±20%
Impedance 40 Ω
Standard IEC 60950, ITU-T K17
General Parameters
Output Polarity +, –
Pulse Cycle 1 s ~ 99 s
Counter 1 ~ 999
Working Power AC 220 V 50 Hz
Trigger Mode Auto/Manual;

Single trigger is available
Ground Mode Using flat ground line
Ambient Temperature 15℃-35℃
Humidity Range 45%-75%
Atmosphere Pressure Range 86 kPa-106 kPa
Dimension 19”/4U
Weight Approx. 19 kg

Downloads

Adobe PDF

Combination Wave Surge Generator CWS 20G Series Datasheet

Language: English
