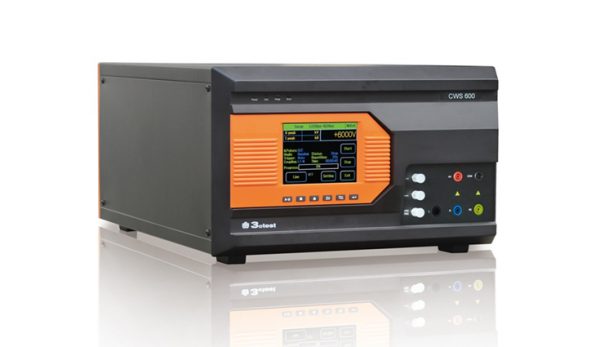

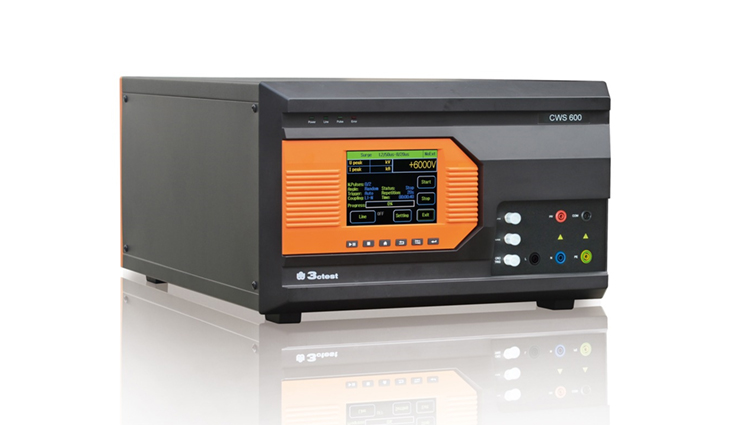

Combination Wave/Surge Simulator

Model：CWS 60/600/800/1000

Surge Simulator_Surge Immunity Generator CWS 600 series combination wave lightning surge simulator is specially designed to simulate the surge impulse interference, which totally satisfy the immunity testing requirement of CE and CCC approval to single-phase EUT.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

Lightning surge is a phenomenon of transient high voltage or bulk current produced by lightning and the on-and-off behavior of electronic or electrical switches, almost all the electronic or electrical device will suffer from surge. High-end CWS 600 series combination wave lightning surge simulator is specially designed to simulate the surge impulse interference, which totally satisfy the immunity testing requirement of CE and CCC approval to single-phase EUT. Optional external coupling/decoupling networks can be configured to test three-phase EUTs. With PMC 1200 module, the product and meet the requirement of IEC 61000-4-9.

Features：

  • 5.7 inches color touch screen on front panel
  • Built-in single-phase coupling/decoupling networks
  • With test sequence, easy operation
  • 250 V AC / 16 A; 110 V DC-1 / 12 A
  • Controllable external three-phase coupling/decoupling networks
  • Surge voltage and current monitoring LCD display
  • Ethernet, RJ 45 interface for PC remote control and printing testing report

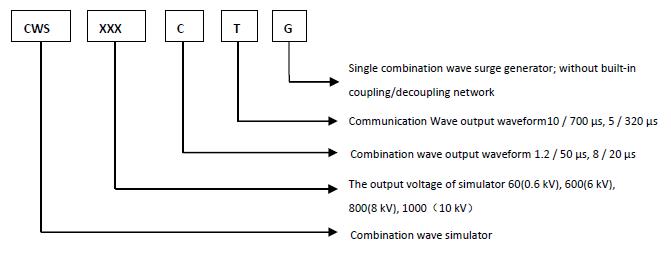

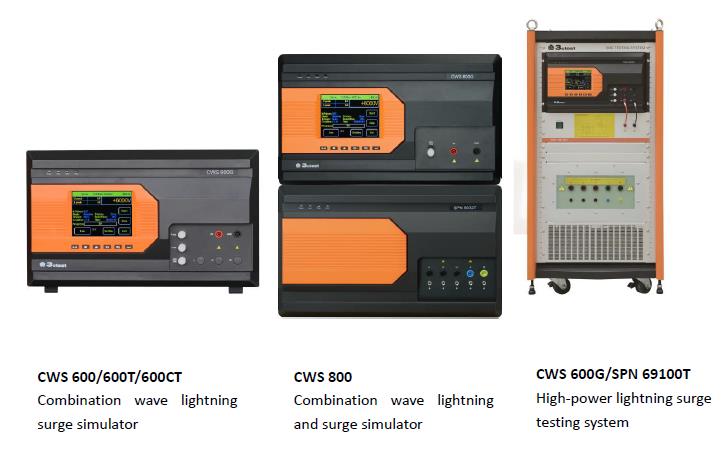

Naming Rule：

Model No.

Standard

  • IEC 61000-4-5
  • IEC 61000-4-9
  • IEC 61326
  • IEC 60255-22-5
  • IEC 61850-3
  • GB/T 17626.5
  • EN 61000-4-5
  • EN 61000-4-9
  • EN 61326
  • UL1449
  • ITU-T K.20
  • ITU-T K.12
  • ITU-T K.45
  • GJB 4000-2000

Specifications

Technical Parameters
Model No. Output Voltage Output Waveform Output Impedance Peak Value Acquisition
1.2/50 μs

8/20 μs

 10/700 μs

5/320 μs

 2 Ω 5 Ω 40 Ω
CWS 60G 20-600 V √ √
CWS 600 0.3-6 kV √ √ √
CWS 800 0.3-8 kV √ √ √
CWS 1000 0.3-10 kV √ √ √
CWS 600T 0.3-6 kV √ √ √
CWS 600CT 0.3-6 kV √ √ √ √ √ √
Model No. Optional Coupling/Decoupling Networks Optional Impulse Magnetic Field

IEC 61000-4-9

GB/T 17626.9

 Cabinet Dimension
Built-in single-phase-3-wire AC 220 V 16 A

DC-1 220 V 12 A

 External three-phase-5-wire SPN 38XXT

AC 380 V 16 A

DC-1 220 V 16 A (30 A)

 19 Inches

6U

 19 Inches

8U
CWS 60G √
CWS 600 √ √ √ √
CWS 800 √ √ √ √
CWS 1000 √ √
CWS 600T √
CWS 600CT √ √ √
General Parameters
Synchronization 0°-360°，1° step setup or random mode
Polarity +/-/alternative
Trigger Mode AUTO/MANUAL/EXTERNAL SIGNAL TRIGGER
Impulse Cycle 5-99 s（The shortest cycle depends on testing current）
Testing number 1-999
Failure Detection The failure information will be displayed on LCD in front panel when failure occurs and interrupt the working of instrument.
Working Status Indication LED indication and LCD display on front panel
EUT Mains Voltage Injection 4mm2 banana plug cable
Detection Output Mode Standard 1 m Coaxial Wire
Display Screen 5.7 Inches TFT color touch screen
Working Mains AC 110 V/220 V,±10%，50 Hz /60 Hz（AC 220 V in mainland China）
Fuse 6 A
Maximum Power Consumption 200 W
User Storage Space Infinite (PC)
Communication Mode Ethernet, RJ45
Cabinet Dimension（W*H*D） 19 Inches/6 U/8 U
Weight Approx. 30 kg
Temperature 15 ~ 35 ℃
Humidity 45% ~ 75%
Air pressure range 86kPa ~ 106kPa
