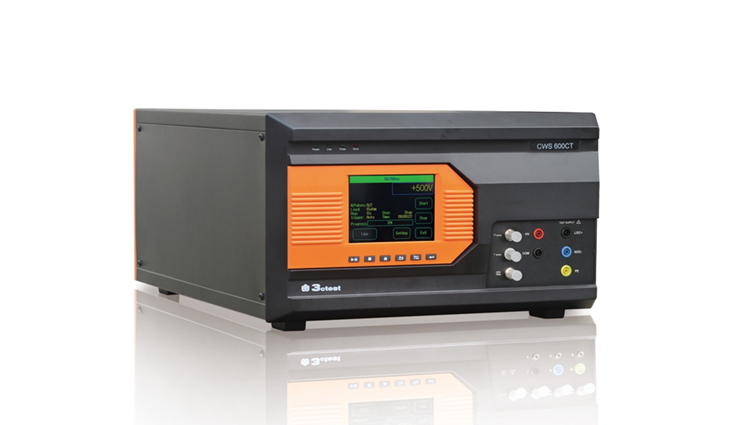

Combination Wave Surge Simulator CWS

Model: CWS 600CT

Designed according to IEC 61000-4-5 and ITU K.17, the Combination Wave Surge Simulator CWS 600CT can simulate the surges (impulse) caused by switching and lightning.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

Designed according to IEC 61000-4-5 and ITU K.17, the Combination Wave Surge Simulator CWS 600CT can simulate the surges (impulse) caused by switching and lightning, and generate combination wave 1.2/50 μs, 8/20 μs, combination wave 10/700 μs, 5/320 μs. The product features built-in coupling/decoupling networks (CDN) rated up to 250 V AC/ 16 A and 18 μF calibration capacitor. With intuitive graphical user interface, it is easy and convenient to conduct tests.

Features:

  • Combination wave 1.2/50 μs, 8/20 μs with pulse voltage up to 6 kV.
  • Combination wave 10/700 μs, 5/320 μs with pulse voltage up to 6 kV.
  • 5.7-inch color touch screen for operations on the front panel.
  • Built-in CDN rated 250 V AC/ 16 A.
  • Built-in 18 μF calibration capacitor.
  • Ethernet and RJ45 interfaces can be used for PC remote control and test report printing.

Standard

  • IEC 61000-4-5
  • IEC 60255-5
  • EN 60255-5
  • ITU K.17

Specifications

General parameters
Display screen 5.7inch TFT Touch Screen
Range of working power supply AC 110 V/220 V，±10%，50/60 Hz±5%（AC 220 V / 50 Hz for China)
Fuse 6 A
Max. Power dissipation 200 W
User storage space Infinity（PC)
Communication mode Ethernet、RJ45
External control mode BNC,5 VTTL
CRO trigger output BNC,5 VTTL
Run control input BNC,5 VTTL
External Sync input 45-65 Hz, 20-500 V between dotted end and no dot end

0-500 V among dotted end, no dot end and crate
Output of Warning lamp 0-220 V AC 10 A/0-48 V DC 3 A

The power supply depends on the types of external signal lamp
Safety circuit Stop working when the safety loop is open circuit.
Failure detection LCD will display the failure on the front panel and interrupt instrument working.
Instrument working status indicator LED on the front panel indicates and LCD displays
Instrument grounding connection Use flat ground wire
EUT power input 4mm2 banana plug wire
Detection output mode Standard 1m coaxial cable
Size of crate（W*H*D） 19 inch/6U
Weight Approx.50 kg
Temperature range 15–35 ℃
Humidity range 45%-75%
Air pressure range 86 kPa～106 kPa
1.2/50us, 8/20us technical parameters
Test voltage range 0.3 kV–6.0 kV± 10%
Voltage rise time 1.2 us± 30%
Voltage duration 50 us± 20%
Test current range 0.15 kA–3.0 kA± 10%（2 ohm）
Current rise time 8 us± 20%
Current duration 20 us± 20%
Output impedance 2 ohm /12 ohm
Output Polarity Positive, negative, alternating
Repetition rate 6 s-99 s (The minimum time depends on the test voltage)
Peak Voltage Detection BNC output from the front panel 1000 V:1 V; Real-time display of measured values
Peak Current Detection BNC output from the front panel 500 A: 1 V; Real-time display of measured values
Counter 1–999
Trigger mode Auto, manual and external trigger
Calibration Capacitor 18 μF
CDN Built-in CDN, 250 V AC, 16 A
Phase Synchronization 0° ~ 360° (45 Hz ~ 65 Hz)
10/700us, 5/320us technical parameters
Test Voltage (open-circuit voltage waveform) 0.3 kV – 6.0 kV± 10%
Voltage rise time 10 us± 20%
Voltage duration 700 us± 20%
Test Current (short-circuit current waveform) 7.5 A ~150 A± 10%
Current rise time 5 us± 20%
Current duration 320 us± 20%
Output impedance 15 ohm / 40 ohm optional
Repetition rate 16 s-99 s (the shortest time depends on the test voltage)
Test times 1–999
Trigger mode Auto, manual and external trigger input

Downloads

Adobe PDF

Combination Wave Surge Simulator CWS 600CT 1500 Series Datasheet

Language: English
