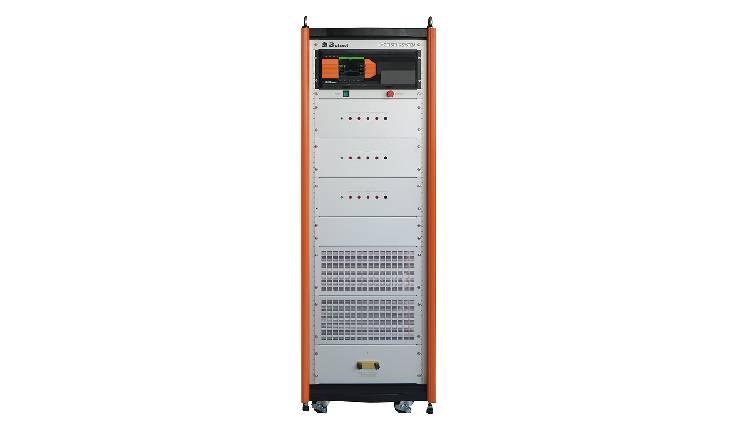

Combination Wave Surge Simulator CWS

Model：CWS 1089A

The simulator is capable of generating waveforms of 2/10 μs, 10/360 μs, 10/1000 μs according to GR-1089-CORE Issue 6 (2011).

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

Combination wave surge simulator CWS 1089A is designed on the basis of 3ctest’s 3rd generation intelligent multifunctional testing system, strengthened with programmable controllers, and boasts integrated system, stable system performance, superior human-machine interaction functions, and simple, easy operation.
The simulator is capable of generating waveforms of 2/10 μs, 10/360 μs, 10/1000 μs according to GR-1089-CORE Issue 6 (2011), and up to 5 output terminals can be used at the same time.

Features：

  • 5.7” color touch screen front panel
  • PC automatic control system
  • Capable of generating wide range of waveforms: 2/10 μs, 10/360 μs, 10/1000 μs
  • Ethernet RJ 45 interface

Standard

  • GR-1089-CORE Issue 6 (2011)

Specifications

Technical Parameters – 2/10 μs (5 terminals)
800 V 1,500 V 2,500 V 5,000 V
Open-Circuit Voltage 200 V – 800 V (+20%) 200 V – 1,500 V (+20%) 200 V – 2,500 V (+20%) 200 V – 5000 V (+20%)
Short-Circuit Current 25 A – 100 A per line 13.33 A – 100 A per line 40 A – 500 A per line 20 A – 500 A per line
Rising Edge Time 1 μs – 2 μs 1 μs – 2 μs 1 μs – 2 μs 1 μs – 2 μs
Pulse Duration 2 μs – 9 μs 2 μs – 9 μs 2 μs – 9 μs 2 μs – 9 μs
Repetition Frequency 1 / 8 s at 800 V 1 / 11 s at 1,500 V 1 / 6 s at 2,500 V 1 / 23 s at 5,000 V
Technical Parameters – 10/360 μs (5 terminals)
1,000 V 1,000 V
Open-Circuit Voltage 50 V – 1,000 V (+15%) 50 V – 1,000 V (+15%)
Short-Circuit Current 1.25 A – 25 A per line 5 A – 100 A per line
Rising Edge Time 7.5 μs – 10 μs 7.5 μs – 10 μs
Pulse Duration 250 μs – 358 μs 250 μs – 358 μs
Repetition Frequency 1 / 20 s at 1,000 V 1 / 20 s at 1,000 V
Technical Parameters – 10/1000 μs (3 terminals)
1,000 V 1,000 V
Open-Circuit Voltage 100 V – 1,000 V (+15%) 100 V – 1,000 V (+15%)
Short-Circuit Current 10 A – 100 A per line 16.6 A – 166.6 A per line
Rising Edge Time 6 μs – 10 μs 6 μs – 10 μs
Pulse Duration 1000 μs – 1500 μs 1000 μs – 1500 μs
Repetition Frequency 1 / 51 s at 1,000 V 1 / 51 s at 1,000 V
General Parameters
Output Polarity +, –
Operating Power Supply AC 110 V / 220 V±10%, 50 Hz / 60 Hz
Trigger Mode Automatic / Manual; can be set as single-time triggering
Ambient Temperature 15℃-35℃
Humidity Range 45%-75%
Dimension 35 U, 620 x 450 x 1,800 mm
Weight Approx. 200 kg

Downloads

Adobe PDF

Combination Wave Surge Simulator CWS 1089A Series Datasheet

Language: English
