Combination Wave Surge Simulator CWS

Model：CWS 1089B

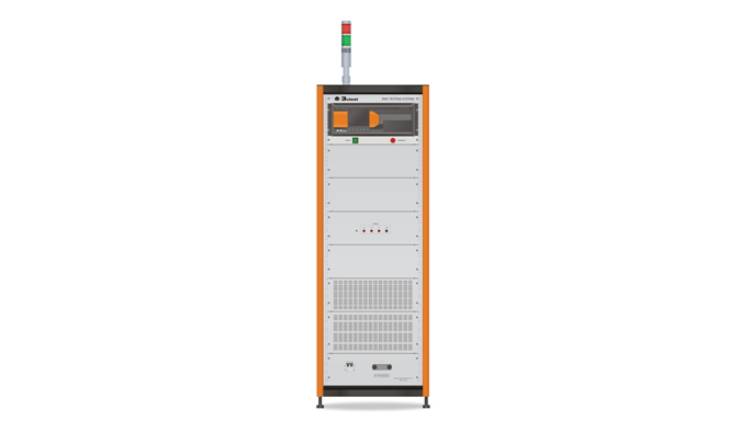

Combination wave surge simulator CWS 1089B is designed on the basis of 3ctest’s 3rd generation intelligent multifunctional testing system.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

Combination wave surge simulator CWS 1089B is designed on the basis of 3ctest’s 3rd generation intelligent multifunctional testing system, strengthened with programmable controllers, and boasts integrated system, stable system performance, superior human-machine interaction functions, and simple, easy operation.
The simulator is capable of generating waveform of 10/250 μs according to GR-1089-CORE Issue 6 (2011).

Features：

  • 5.7” color touch screen front panel
  • PC automatic control system
  • Ethernet RJ 45 interface

Standard

  • GR-1089-CORE Issue 6 (2011)

Specifications

Technical Parameters – 10/250 μs
Open-Circuit Voltage 200 V – 4,000 V (+16%)
Short-Circuit Current 134 A – 2,000 A (1.5Ω);

100 A – 2,000 A (2Ω);

25 A – 500 A (8Ω);
Voltage Waveform Rising Edge Time 4 μs – 10 μs
Voltage Pulse Duration 250 μs – 400 μs
Current Waveform Rising Edge Time 7 μs – 10 μs
Current Pulse Duration 250 μs – 300 μs
Repetition Frequency 1 / 99 s at 4,000 V
General Parameters
Output Polarity +, –
Operating Power Supply AC 110 V / 220 V±10%, 50 Hz / 60 Hz
Triggering Method Automatic / Manual; can be set as single-time triggering
Operating Temperature 15 ℃ – 35 ℃
Operating Humidity 45%-75%
Dimension 35 U, 620 x 450 x 1,800 mm
Weight About 100 Kg

Downloads

Adobe PDF

Combination Wave Surge Simulator CWS 1089B Series Datasheet

Language: English
