Introduction：

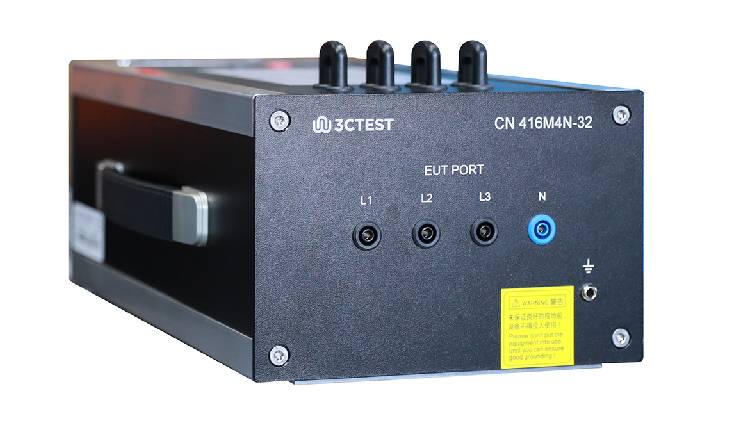

The CN 416M4N-32 coupling network is suitable for (common mode conduction anti-interference) 2-wire or 3-wire cables, and its coupling common mode conduction anti-interference voltage can reach 300V. Design strictly in accordance with the requirements of IEC 61000-4-16:2015 standard.
| Technical Parameters | |
|---|---|
| Standard | IEC 61000-4-16:2015 |
| Coupling Frequency | 0 Hz-150 kHz, CW wave |
| Line Impedance | 400 Ω * 4(Accuracy 1%) |
| Coupling Voltage | 300V |
| Coupling Mode | 4-wire common mode (simultaneously to ground) |
| Coupling Device | 1 μF capacitor(Accuracy 1%) |
| Working Voltage | Maximum 690V DC |
| Working Current | Maximum 32A |
| AE/EUT Port Type | 4 mm banana head |
| Signal Injection Port Type | 4 mm banana head |
| General Parameters | |
| Weight | Approximately 3.6 kg |
| Size | 360 mm x 220 mm x 135 mm (length x width x height) |
| Shell Material | Aluminum material |
| Ambient Temperature | 15 ° C -35 ° C |
| Relative Humidity | 45% -75% |
