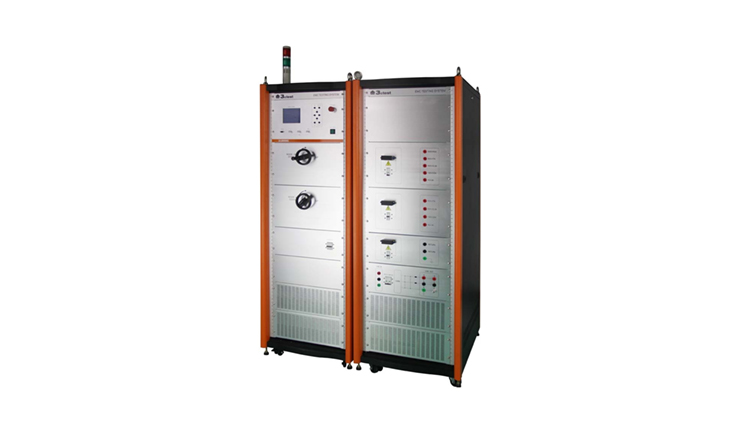

Communication Power Line Safety Tester

Model：UL-60950G

Communication power line safety tester UL 60950G is designed to test the induced and conducted disturbance on the telecom lines generated by power line. It meets the requirements of UL60950.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

UL 60950G is designed to test the induced and conducted disturbance on the telecom lines generated by power line. It meets the requirements of UL60950. It can detect and measure all the conditions of generator, such as current and voltage value, frequency, test condition and so on and display real-time data.

  • LCD display
  • Embedded system main control unit
  • Current and Voltage LCD real-time display
  • RS232 communication interface, available for remote control

Standard

  • GB4943
  • EN 60950-1
  • YD-T 993
  • IEC 60950-1
  • UL 60950-1

Specifications

Technical Parameters
Test times 1-999
Interval time 50s-9h99min99s
Duration Max. 9h99min99s
Test voltage 20-600V
Test mode 1/2/3/3A/4/5
Output current MAX：60A；over current protection
Display resolution current, voltage: better than 10%;

frequency: better than 1Hz
Insulation strength ≤ 500V RMS (N-PE)
General Parameters
Operating mains single-phase，220V±5%≥25KVA 50Hz±2%
Temperature 15-35℃
Humidity 45%-75%
Ground resistance ≤0.5Ω
Dimension 1730×1200 x800mm(35Ux2)
Weight Approx.200kg

Downloads

Adobe PDF

Communication Power Line Safety Tester UL-60950G Series Datasheet

Language: English
