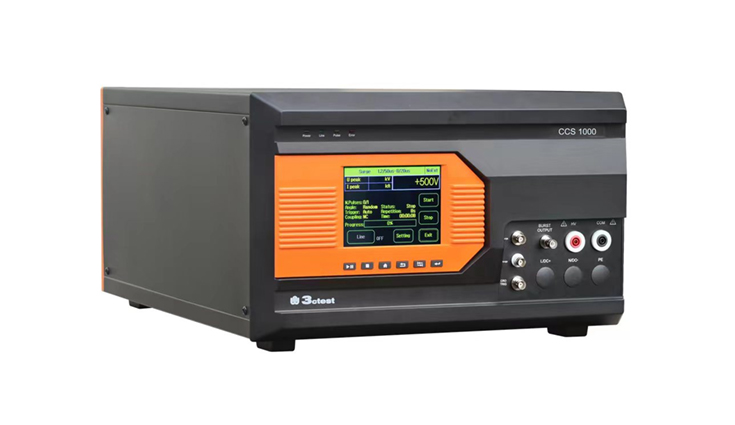

Compact Immunity Test System CCS 1000

Model：CCS 1000

CCS 1000 is an intelligent multifunctional compact immunity (EMS) test system, which meets all the requirements of international standards and product standards for transient pulse, surge and voltage dip.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

CCS 1000 is an intelligent multifunctional compact immunity (EMS) test system, which meets all the requirements of international standards and product standards for transient pulse, surge and voltage dip. Its test voltage is up to 10 kV. CCS series are the best choice for full compliance immunity test solutions. It not only meets the immunity testing requirements of CE, but also be capable of performing three-phase-five-line EUTs tests by using automatically controlled external CDNs (up to 400 A) of our company. Various enclosures needed are available to satisfying types of needs such as power frequency magnetic field tests.

Features：

  • 5.7” color touch screen
  • EUT surge failure detection function
  • Ultra small simulator with a maximum capacity of 10.0 KV
  • Surge test voltage and current monitoring and measurement
  • Test the scheduling function
  • Optional for external three-phase CDN modules
  • Ethernet (RJ45 interface), used for PC remote control and printing test reports.

Standard

  • IEC 61000-4-5
  • IEC 61000-4-9
  • IEC 61000-4-4
  • IEC 61000-4-8
  • IEC 61000-4-11
  • IEC 61008-1
  • IEC 61009-1
  • IEC 61000-4-20
  • GB/T 17626.5
  • GB/T 17626.4
  • GB/T 17626.8
  • GB/T 17626.9
  • GB/T 17626.11
  • GB/T 17626.29
  • EN 61000-4-5
  • EN 61000-4-9
  • EN 61000-4-4
  • EN 61000-4-11
  • EN 61008-1
  • EN 61009-1
  • EN 61543
  • EN 61000-4-8
  • EN 61000-4-29
  • ANSI/IEEE C62.41

Specifications

General Parameters
Display Screen 5.7-inch TFT touch screen Power Supply AC 110 V/220 V(士10%)，50 Hz /60 Hz(±5%)（default AC 220 V 50 Hz in mainland China）
Fuse 6 A Max. Power Consumption 200 W
Memory Space Infinite（PC） Communication Mode Ethernet, RJ45
Dimension 19”/6U Weight Approx. 32 kg
Ambient Temperature 15 ℃-35 ℃ Relative Humidity 45%-75%
Atmospheric Pressure 86 kPa-106 kPa
EFT/burst Tests as per IEC 61000-4-4
Test Voltage 0.25 kV-5 kV(±10%） Burst Duration 0.075 ms~750 ms
Source Impedance 50 Ω Burst Cycle 11 ms~9999 ms
Rise Time 5 ns(±30%)，50 Ω load，

1000 Ω load

 Polarity Positive, negative, alternative
Pulse Duration 50 ns(±30%)，50 Ω load Test Duration 1 s-9999 s
50 ns-15/+100 ns，1000 Ω load Phase Synchronization 0°-360°, 1° step or random
Pulse Frequency 0.1 kHz-1000 kHz Trigger Mode Automatic, manual or external trigger
Surge Tests as per IEC61000-4-5
Test Voltage 0.3 kV-5 kV (±10%) Polarity Positive, negative, alternative
Test Current 0.15 kA~5 kA（±10%） Trigger Mode Automatic, manual or external trigger
Voltage Waveform Front time: 1.2 μs (±30%), Time to half value: 50 μs (±20%) Pulse period 8 s~99 s (the shortest depends on test voltage）
Current Waveform Front time: 8 μs (±20%), Time to half value:20 μs (±20%) Number of Test 1–999
Source Output
Impedance		 2 Ω Phase synchronization 0° ~360°, 1° step or random
Coupling
Resistance		 10 Ω, 0 Ω coupling resistor Either IEC standard mode or customized mode is optional 3 digits on display Surge Voltage and Current Peak

Detection

 Front panel BNC output,

surge voltage: 1000 V:1 V

Surge current: 500 A:1 V
Coupling Capacitance 9 μF, 18 μF
PFMF Tests as per IEC61000-4-8 with optional module MFT 400/1200 or VMT series and magnetic field coils
Continuous Operating Current Range 1 A~120 A Test Duration 1 s~28800 s
Current Waveform 50 Hz/60 Hz sine wave Waveform Interval 1 s~9999 s
Current Distortion Rate <5% Coil Size 1000mm*1000mm (TCXS111/TCXS113)
Operating Current Range for Short Time 120 A~500 A Coil shape Rectangle
Magnetic Field
Strength		 TCXS 111 Single-turn coil: 1 A/m ~100 A/m (continuous) 100 A/m ~400 A/m (1 s-10s in short time)

TCXS 113 Three-turn coil: 1 A/m ~300 A/m (continuous) 300 A/m ~1200 A/m (1 s-10 sin short time)

 Trigger mode Auto, Manual, External signal trigger
Magnetic Field

Output Accuracy

 Deviation 1dB（minimal magnetic field intensity like 1A/m needs to be adjusted manually before tests.） Output Magnetic
Field Strength		 Test Sequencing setup
Pulse Magnetic Field Tests as per IEC 61000-4-9 with optional module PMC 1200 and magnetic field coils
Output Magnetic Field Range 100 A/m-1200 A/m Model of Coil TCXS 111
Output Current 100 A-2000 A Coil Size 1000*1000mm
Waveform Risetime: 7.2μs~10.4μs
duration: 18μs ~26μs		 Coil Shape Rectangle
Polarity Positive,negative, alternative Coil Turn Single
Pulse Cycle 5 s~99 s（the shortest depends on test current） Trigger Mode Automatic, manual or external trigger
Phase synchronization 0°~360°, 1° step or random Output Magnetic Field Strength Test sequencing setup
Number of Test 1~999
Power Fail Tests as per IEC 61000-4–11 (with Optional Module VVT or VMT series) & IEC 61000-4-29
EUT Max. Voltage 300 V AC, 300 V DC Voltage Variation Level 0~100%
EUT Max. Current AC/DC 16 A continuous current;

AC 20 A continuous 5 s;

40 A continuous 3 s;

500 A impulse current

 Time of Voltage Variation Decreasing 500 ms~9999 ms (50%~100%) or abrupt (same with rise/ fall time for dips and

interruption)

1000 ms~9999 ms (0%~100%) or abrupt (same with rise/ fall time for dips and

interruption)
Dip Level 0%~100%（for VVT/VMT series）

0%，40%，70%，80%(for VVTxxxxSFseries)

 Duration after Voltage Variation Decreasing 10 ms-99999 ms
Interruption level 0% Time of Voltage Variation Increasing 500 ms~9999 ms（50%~100%）

1000 ms~9999 ms（0%~100%）
Dip and Interruption Rise/Fall Time 1 µs ~5 µs (100Ω load) Phase synchronization 0°~360°, 1° step or random
Dip and Interruption Interval 5 ms~9999 ms Trigger Mode Automatic, manual or external trigger
Dip and Interruption Duration 0.1~9999 cycle or 1ms~9999ms EUT Current and Voltage Measurement LCD display, BNC terminal: voltage 100:1, current 10 A:1 V
Dip and Interruption Test Duration 1 s~9999 s
Models Selection
Name Model No. IEC 61000-4-4 IEC 61000-4-5 IEC 61000-4-8 IEC 61000-4-9 IEC 61000-4-11 IEC 61000-4-29 CDN single- phase-3-line
Compact Immunity Test System CCS 1000 √ √ √ √ √ √
EFT/Burst CDN EFTN 3816T √
Surge CDN SPN 3816T √
EFT/Burst and Surge CDN SEPN 3816T √ √
SEPN 3832T √ √
Power Frequency Magnetic Module MFT 400 √
MFT 1200 √
AC Voltage Dips, Short Interruption and Variation Module VVT 2216S √
VVT 2216SV √
Power Fail and Power Frequency Magnetic Module VMT 2216S √ √
VMT 2216SV √ √
Pulsed Magnetic Field Converter PMC 1200 √
Coil TCXS111 √ √
TCXS113 √ √

Downloads

Adobe PDF

Compact Immunity Test System CCS 1000 Series Datasheet

Language: English
