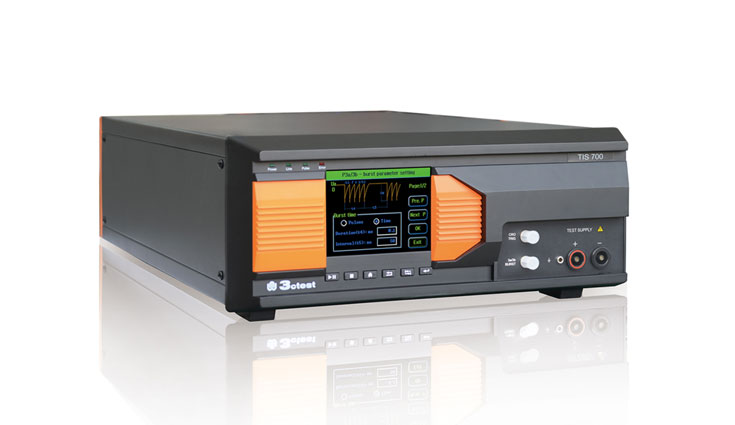

Compact Transient Immunity Simulator

Model：TIS 700x

The compact transient immunity simulator TIS700 series for automotive transient unifies the capabilities of an EFT/Burst P3a/3b, micro pulse P1/2a and the required coupling network into one box.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

The TIS700x series for automotive transient unifies the capabilities of an EFT/Burst P3a/3b, micro pulse P1/2a and the required coupling network into one box. The TIS700 series are equipped to meet all international, car manufacturer specifications, and kinds of waveform modules can be customized as per user’s requirements. The current of built-in coupling network ranges up to 200A depending on the model. The built-in coupling network can be used and controlled by any unit of the LDS200 series, APG series and APS series to be the central EUT output port. Different simulators can be connected together via data bus and connected to PC via Ethernet to be a whole test system.

Features:

  • 5.7 inch color touch screen front panel operation
  • Internal EFT/burst module
  • Internal micro-pulse module
  • As per ISO 7637 JASO SAE NISSAN
  • Internal 60V/30A CDN（incl. load dump coupling）, Max. Current up to 200A (200A customized)
  • Via CN25 Control external load dump and battery simulation via CN25
  • DUT voltage and current detection and over current protection function
  • Emergency stop function
  • internal mains switch
  • Ethernet, RJ45 port for remote control, print and documentation.

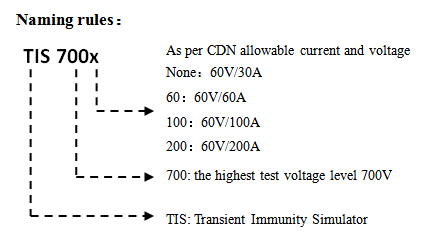

Naming rules：

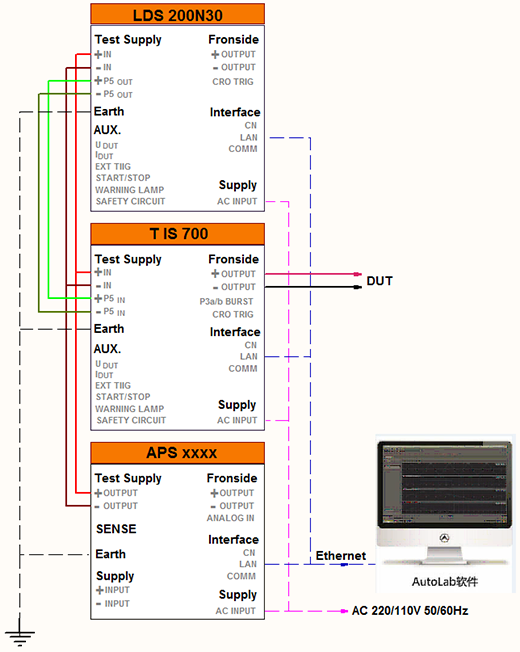

Test connection：

Standard

  • BMW-(Airbag ECU)
  • BMW 600 13.0(Part 2)
  • Case New Holland ENS0310
  • Chrysler PF-9326
  • Cummins 14269(982022-026)
  • DaimlerChrysler PF-10540
  • Audi(Reference vehicles)
  • Chrysler CS-11809(2009)
  • ISO 7637-2-2011
  • ISO 7637-3-2016
  • GB/T 21437.2-2008
  • EN 301489-1
  • EN 301489-17
  • EN 300329
  • EN 300340
  • EN 301489-24
  • EN 300342-1
  • GJB 181A

Specifications

Technical parameters
Micro pulse module P1
Test voltage 3-600 V
Test voltage Negative
Rise time Tr 0.5 us – 1 us
1.5 us – 3 us
No load
Duration Td 50 us 土20% no load
12 us 土20% 2 ohm matching load
1 ms 土20% no load
1 ms 土20% 50 ohm matching load
2 ms土20% no load
1.5 ms土20% 10 ohm matching load
0.2 ms 土20% no load
0.3 ms 土20% no load
0.5 ms土20% no load
Source impedance 2 Ω, 4 Ω, 10 Ω, 20 Ω, 30 Ω, 50 Ω
Number of test 1-9999
DUT voltage monitoring 10:1
DUT current monitoring 10 A:1 V
Pulse interval 0.2 s-60 s (the shortest interval depends on output voltage)
Coupling mode ICC,DCC (50 μs 土20% no load waveform)
Micro pulse module P2a
Test voltage 3-200 V
Test voltage Positive
Rise time Tr 0.5 us – 1 us
1.5 us – 3 us
No load
Duration Td 50 us 土20% no load
12 us 土20% 2 ohm matching load
1 ms 土20% no load
1 ms 土20% 50 ohm matching load
2 ms土20% no load
1.5 ms土20% 10 ohm matching load
0.2 ms 土20% no load
0.3 ms 土20% no load
0.5 ms土20% no load
Source impedance 2 Ω, 4 Ω, 10 Ω, 20 Ω, 30 Ω, 50 Ω
Number of test 1-9999
DUT voltage monitoring 10:1
DUT current monitoring 10 A:1 V
Pulse interval 0.2 s-60 s (the shortest interval depends on output voltage)
Coupling mode ICC, DCC
EFT/Burst module P3a/3b
Test voltage 25-700 V
Polarity P3b positive, P3a negative
Rise time Tr 5 ns土30% into 50 ohm load
5 ns土30% into 1,000 ohm load
Duration Td 150 ns – 45/+45 ns into 50 ohm load
150 ns – 45/+45 ns into 1,000 ohm load
Source impedance 50 Ω
Pulse number 1-200
Burst interval 50 ms-999 ms
Pulse frequency 0.1 kHz-200 kHz
Test duration 1 s-50000 s
Coupling mode CCC, DCC
output Direct output By 50 Ω coaxial connector(for test connected to capacitance coupling clamp
General parameters
Mains supply AC 110/220 V，土10%，45-65 Hz
Environment temperature 15 ℃ – 35 ℃
Relative humidity 35%-85%RH（no condensing）
Dimension Output current 30 A: 4U
Output current 60 A and 100 A: 6U
Output current 200 A: 8U
Weight Approx. 20 kg
Trigger Automatic, manual
Network Internal CDN 60 V/30 A current up to 200 A
Input DUT supply DC voltage from APS,
APG or other DC source
Pulse 5,7 TIS 700 network
superimposing Pulse 5 and Pulse 7
Output LDS200 input Central DUT output port
Coaxial output port To connect capacitance coupling clamp as per ISO7637-3

Downloads

Adobe PDF

Compact Transient Immunity Simulator TIS 700x Datasheet

Language: English
