Coupling and Decoupling Networks CDN

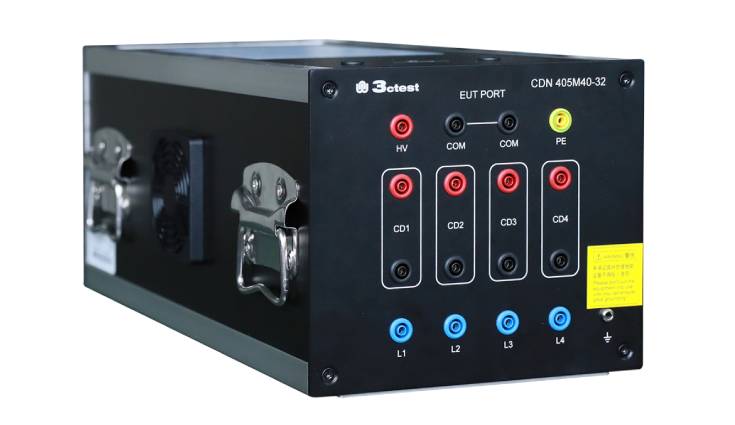

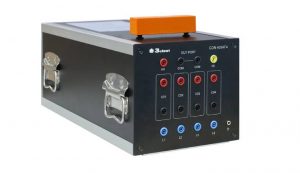

Model：CDN 405M40-32

CDN 405M40-32 is suitable for coupling and decoupling testing networks of data and control lines for 4 unshielded asymmetric lines during surge testing, with a peak voltage of up to 6 kV.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

CDN 405M40-32 is suitable for coupling and decoupling testing networks of data and control lines for 4 unshielded asymmetric lines during surge testing, with a peak voltage of up to 6 kV. Design strictly in accordance with the requirements of GB/T 17626.5 and IEC 61000-4-5 standards. All sockets in the product are safe banana plugs, ensuring maximum safety for users.

Features

  • Used for 4 unshielded unbalanced lines.
  • All sockets are safe banana plugs, ensuring maximum safety for users.
  • Suitable for 1.2/50 μ s, 8/20 μs combination waves.

Standard

  • IEC 61000-4-5
  • GB/T 17626.6
  • EN 61000-4-5

Specifications

Technical Parameters
Standard IEC 61000-4-5
Coupled Waveform 1.2/50 μs、8/20 μs
Pulse Voltage 6 kV
Output Impedance 40 Ω±5%
Coupling Components 0.5 μF capacitor
Coupling Mode 4 unshielded asymmetric wires
Communication Interface Specifications 4mm Banana Head
Working Voltage Max 250 V AC/DC
Working Current Max 32 A AC/DC
Decoupling Inductance 1.5 mH
Fan Voltage and Current 24 VDC/2 A
General parameters
Size 475 mm x 235 mm x 195 mm (length x width x height)
Weight About 24 Kg
Shell Material Aluminum material
Ambient Temperature (operating conditions) 15 ℃ – 35 ℃
Relative Humidity (operating conditions) 45%-75%

Downloads

Adobe PDF

Coupling and Decoupling Networks CDN 405M40-32 Series Datasheet

Language: English
