Description

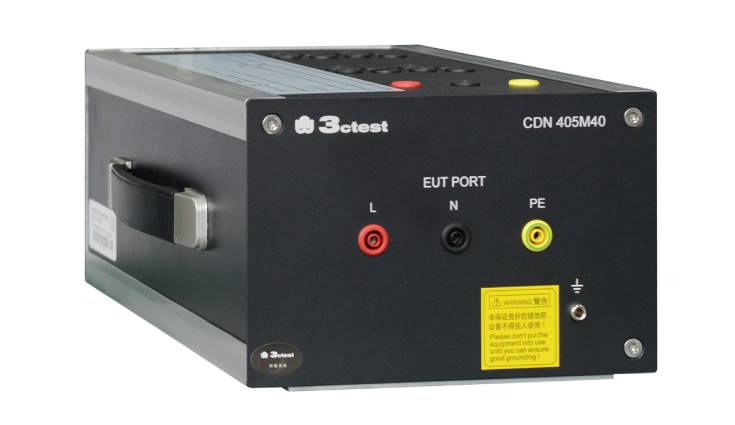

The CDN 405M40 is designed in accordance with IEC 61000-4-5 and GB/T17626.5 and used for coupling surge onto 2-line (1-pair) unshielded unsymmetrical data and control cables for voltage up to 6 kV. All the plugs are type of banana to ensure the safety of users.
Features：
- Applied to 2 lines (1 pair) unshielded unsymmetrical Lines.
- Equipped with banana plugs ensuring the safety of users.
- Applied to 1.2/50 s, 8/20 μs combination wave.

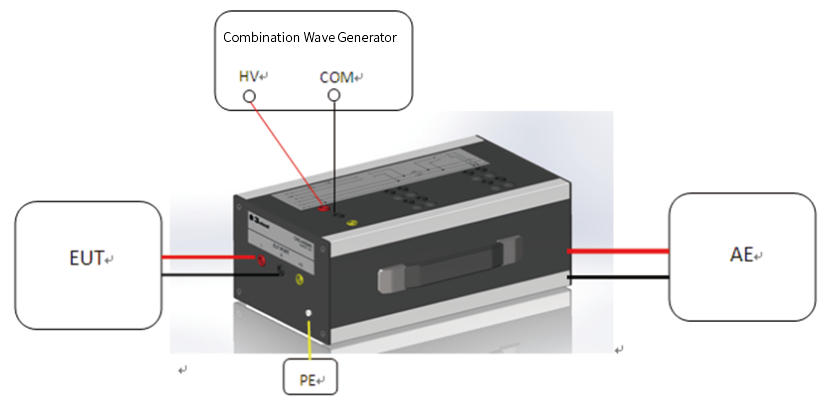

Test Connection Schematic Drawing

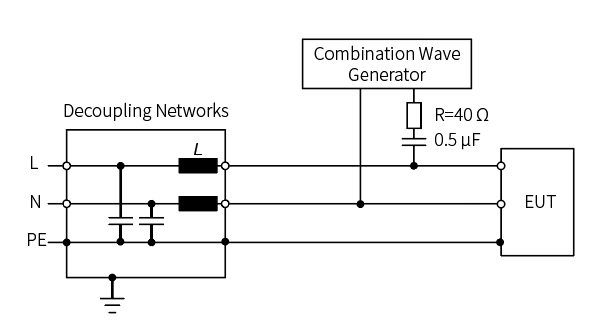

Standard Schematic Diagram Figure 1
As per IEC 61000-4-5：2017 Figure 5

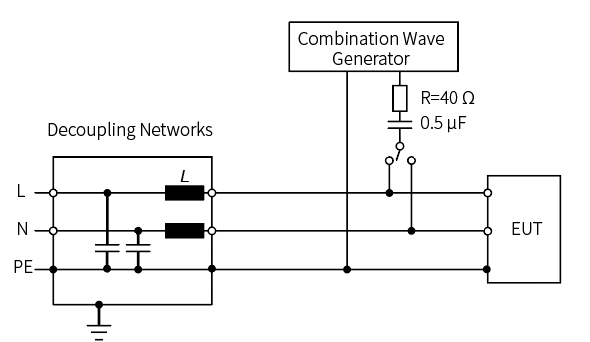

Standard Schematic Diagram Figure 2
As per IEC 61000-4-5：2005 Figure 6
