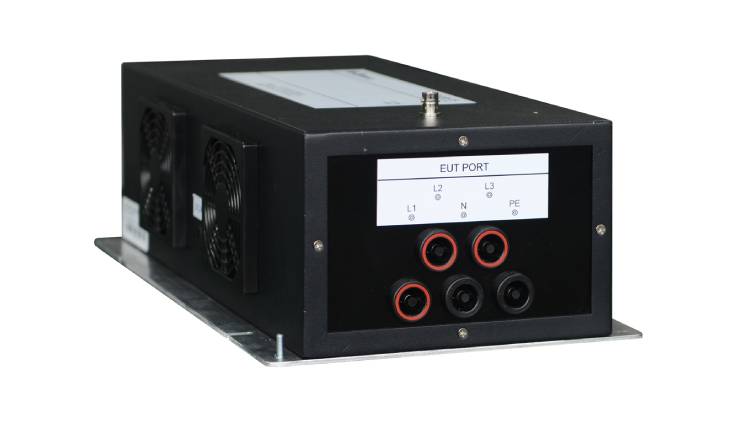

Coupling Decoupling Network CDN Mx

Model：CDN Mx Series

CDN Mx coupling decoupling network is suitable for power line testing of single-phase 1-wire/2-wire/3-wire, three-phase 4-wire, and three-phase 5-wire.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

IEC/EN 61000-4-6 specifies the design and performance of the Coupled Decoupling Network (CDN) series. Detailed regulations have also been made for the types of cables used and the signals transmitted in each coupled decoupling network.
CDN Mx coupling decoupling network is suitable for power line testing of single-phase 1-wire/2-wire/3-wire, three-phase 4-wire, and three-phase 5-wire. The carrying capacity can be customized according to customer needs.

Features

  • Meet the requirements of IEC 61000-4-6:2023.
  • Used for unshielded power cords.
  • High current coaxial terminal.

Standard

  • IEC 61000-4-6
  • GB/T 17626.6
  • EN 61000-4-6

Specifications

Technical Parameters
Standard IEC 61000-4-6
RF Signal Input

Terminal

 BNC
RF Input Power 6 W
Common Mode

Impedance (EUT)

 150 kHz ~ 24 MHz：150 Ω±20 Ω

24 MHz ~ 80 MHz： 150 Ω﹢60 Ω/ -45 Ω

80 MHz ~ 230 MHz：150 Ω±60 Ω
Size ≤32 A: 210 mm (length) x 115 mm (height) x170 mm (depth)
＞32 A: 407 mm (length) x 135 mm (height) x 220 mm (depth)
Weight Approximately 4.5 kg (based on actual product)
Selection Guide
Serial

Number

 Model Technical Parameter
1 CDN M2-100 L+N，100 A 700 V AC/1500 V DC（Line-Ground）, EUT/AE 25 mm2 , 150 kHz-80 MHz
2 CDN M2M3-16 L+N/L+N+PE，16 A 250 V AC/400 V DC（Line-Ground） , EUT/AE 4 mm2 , 150 kHz-230 MHz
3 CDN M2M3 L+N/L+N+PE，32 A 250 V AC/400 V DC（Line-Ground）, EUT/AE 4 mm2, 150 kHz-230 MHz
4 CDN M3-100 L+N+PE，100 A 700 V AC/1500 V DC（Line-Ground），EUT/AE 25 mm2 , 150 kHz-80 MHz
5 CDN M4N-16 L1+L2+L3+N，16 A 250 V AC / 400 V DC（Line-Ground），EUT/AE 4 mm2, 150 kHz-230 MHz
6 CDN M4N-32 L1+L2+L3+N，32 A 250 V AC / 400 V DC（Line-Ground），EUT/AE 4 mm2 , 150 kHz-230 MHz
7 CDN M4PE-32 L1+L2+L3+PE，32A 250 V AC / 400 V DC（Line-Ground），EUT/AE 4 mm2 , 150 kHz-230 MHz
8 CDN M4N-75 L1+L2+L3+N，75 A 700 V AC / 1500 V DC（Line-Ground）, EUT/AE 25 mm2，150 kHz-80 MHz
9 CDN M5-32 L1+L2+L3+N+PE，32 A 250 V AC / 400 V DC（Line-Ground）, EUT/AE 4 mm2 , 150 kHz-230 MHz
10 CDN M5-75 L1+L2+L3+N+PE，75 A 700 V AC/1500 V DC（Line-Ground），EUT/AE 25 mm2，150 kHz-80 MHz
11 CDN M3L L1+L2+L3 ，32 A 250 V AC/400 V DC（Line-Ground）, EUT/AE 4mm2 , 150 kHz-230 MHz
12 CDN M3L-75 L1+L2+L3 ，75 A 700 V AC / 1500 V DC （Line-Ground）, EUT/AE 25 mm2，150 kHz-80 MHz
13 CDN M4N-100 L1+L2+L3+N，100 A 700 V AC/1500 V DC（Line-Ground）,EUT/AE 25 mm2，150 kHz-80 MHz
14 CDN M5-100 L1+L2+L3+N+PE，100 A 700 V AC/1500 V DC（Line-Ground），EUT/AE 25 mm2，150 kHz-80 MHz
15 CDN M4PE-75 L1+L2+L3+PE，75 A 700 V AC/1500 V DC（Line-Ground），EUT/AE 25 mm2，150 kHz-80 MHz

Downloads

Adobe PDF

Coupling Decoupling Network CDN Mx Series Series Datasheet

Language: English
