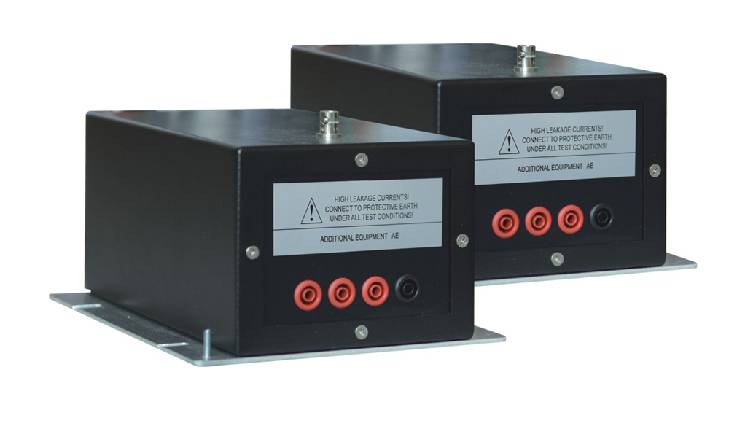

The CDN M4/16 is designed according to IEC/EN 61000-4-6, which specifies clearly on the design and performance of coupling/decoupling networks. The CDN M4/16 is applicable to three-phase (4-wire supply lines) mains supply systems.
| Technical Parameters | |
|---|---|
| Model | CDN M4/16 |
| Standard | IEC/EN 61000-4-6 |
| Frequency Range | 150 kHz ~230 MHz |
| Max. AC Voltag (line to ground) | 250 V |
| Max. DC Voltage (line to ground) | 400 V |
| Max. Current | 16 A |
| RF Input Terminal（BNC） | <30 V |
| EUT Port | 4mm banana(L1/L2/L3/N) |
| AE Port | 4mm banana (L1/L2/L3/N) |
| Common-mode Impedance (EUT) | |
| 150 kHz ~ 26 MHz | 150 Ω±20 Ω |
| 26 MHz ~ 80 MHz | 150 Ω +60 Ω /-45 Ω |
| Voltage Division Coefficient（RF Input-EUT） | |
| 150 kHz ~ 80 MHz | 9.5 dB±1 dB |
| 80 kHz ~ 230 MHz | 9.5 dB±2 dB |
| Common-mode Disturbances Suppression (RF Port / AE) | |
| 150 kHz: | >35 dB |
| 1.5 MHz: | >55 dB |
| 30 MHz: | >55 dB |
| 80 MHz: | >40 dB |
| 230 MHz: | >20 dB |
Model：CDN ST8
The coupling/decoupling networks for screened symmetrical lines CDN ST8 is applicable to 8-line (4-pair) shielded balanced lines.
Model：CDN ST8
The coupling/decoupling networks for screened symmetrical lines
...
Model：CDN M4N-32
The CDN M4N/32 is designed according to IEC/EN 61000-4-6, which specifies clearly on the design and performance of coupling/decoupling networks.
Model：CDN M4N-32
The CDN M4N/32 is designed according to IEC/EN 61000-4-6, whi
...
Model：CDN AF2
The CDN AF2 is applicable to 1-pair unscreened unbalanced lines.
Model：CDN AF2
The CDN AF2 is applicable to 1-pair unscreened unbalanced lines.
...
Model：CDN RJ45
The coupling/decoupling network for unshielded symmetric line CDN RJ45 is designed according to IEC/EN 61000-4-6, which defined clearly the performance of coupling/decoupling networks.
Model：CDN RJ45
The coupling/decoupling network for unshielded symmetric line C
...
