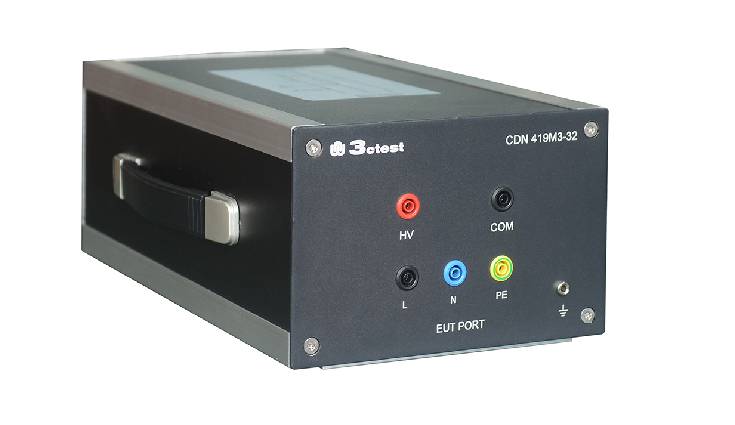

Coupling/Decoupling Networks for Immunity to Conducted, Differential Mode Disturbances CDN 419M3-32

Model：CDN 419M3-32

The CDN 419M3-32 is designed in accordance with IEC610000-4-19:2014 and applicable to immunity to conducted.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

The CDN 419M3-32 coupled decoupling network is suitable for single-phase 2-wire or 3-wire cables with differential mode conducted immunity, and its coupled differential mode conducted immunity voltage can reach 30 V. Design strictly in accordance with the requirements of IEC 61000-4-19:2014 standard

Features

  • Conform to IEC 61000-4-19
  • Applicable to differential mode test on 2-line or 3-line.
  • Banana head terminal signal injection.

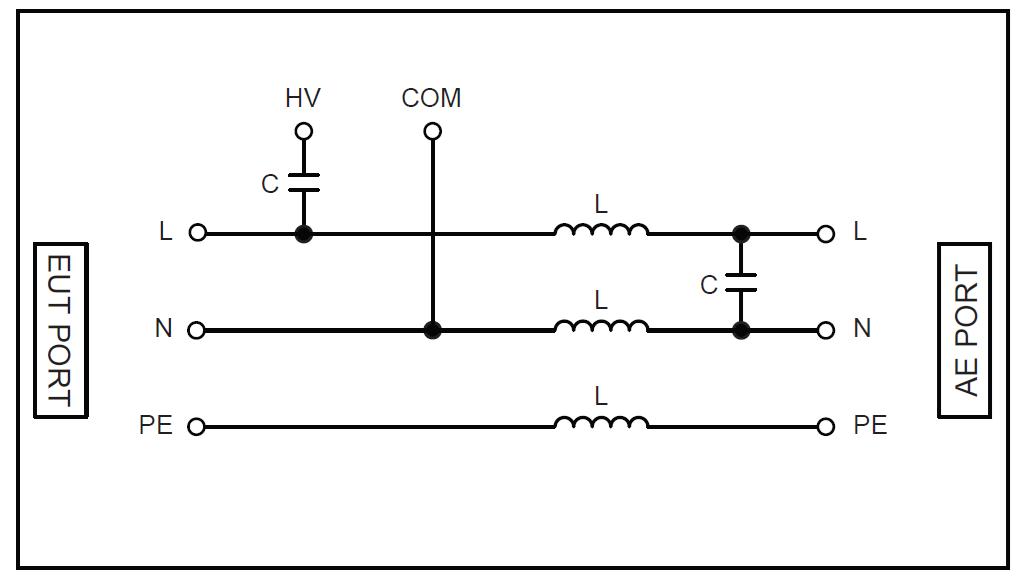

1.Standard Schematic Circuit

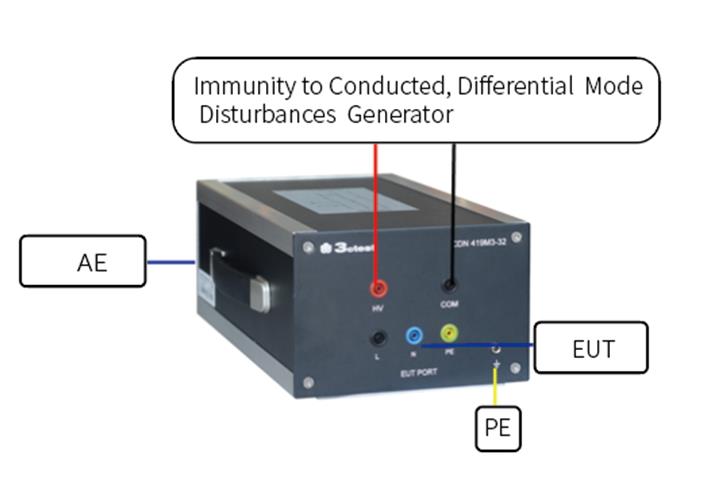

2.Test Connection Illustration

Standard

  • IEC 61000 – 4 -19

Specifications

Technical Parameters
Standard IEC 61000-4-19:2014
Coupling Frequency 2 kHz ~ 150 kHz, CW wave
Coupling Voltage 30 V
Coupling Mode 2-wire/3-wire differential mode (L vs. N wire)
Coupling Device 12 μF capacitor
Working Voltage Maximum 400 V DC
Working Current Maximum 32 A
AE/EUT Port Type 4 mm banana head
Signal Injection Port Type 4 mm banana head
General Parameters
Weight Approximately 10 kg
Size 360 mm x 220 mm x 135 mm (length x width x height)
Shell Material Aluminum material
Ambient Temperature 15 °C – 35 °C
Relative Humidity 45% – 75%
