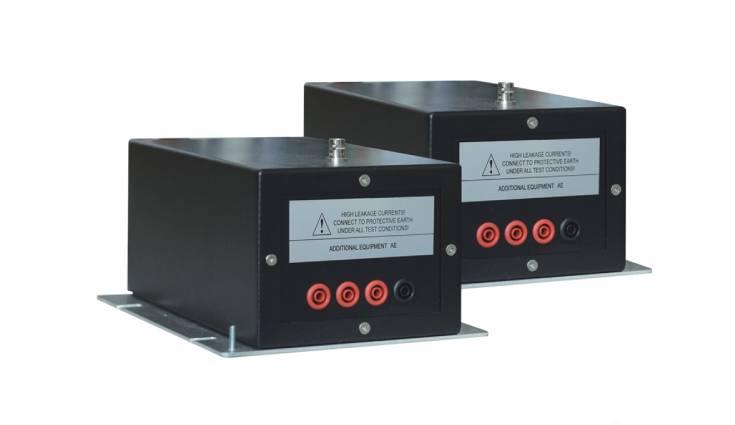

The CDN M4N/32 is designed according to IEC/EN 61000-4-6, which specifies clearly on the design and performance of coupling/decoupling networks. The CDN M4N/32 is applicable to three-phase (4-wire supply lines) mains supply systems.
| Technical Parameters | |
|---|---|
| Model No. | CDN M4N-32 |
| Standard | IEC/EN 61000-4-6 |
| Frequency Range | 150 kHz ~230 MHz |
| Max. AC Voltage (L-PE) | 250 V |
| Max. DC Voltage (L-PE) | 400 V |
| Max. Current | 32 A |
| RF Input Terminal（BNC） | <30 V |
| EUT Port | 4 mm Banana(L1/L2/L3/N) |
| AE Port | 4 mm Banana(L1/L2/L3/N) |
| Common-mode Impedance (EUT) | |
| 150 kHz ~ 26 MHz | 150 Ω±20 Ω |
| 26 MHz ~ 80 MHz | 150 Ω +60 Ω /-45 Ω |
| Voltage Division Coefficient（RF Input-EUT） | |
| 150 kHz ~ 80 MHz | 9.5 dB±1 dB |
| 80 MHz ~ 230 MHz | 9.5 dB±2 dB |
| Common-mode Disturbances Suppression (RF Port / AE) | |
| 150 kHz: | >35 dB |
| 1.5 MHz: | >55 dB |
| 30 MHz: | >55 dB |
| 80 MHz: | >40 dB |
| 230 MHz: | >20 dB |
| General parameters | |
| Dimension | 210 mm(L) x 170 mm(W) x 115 mm(H) |
| Weight | About 4 Kg |
| Enclosure Material | Aluminum |
| Ambient Temperature | 5 ℃ – 40 ℃ |
| Relative Humidity | 20%-80% |
| Package Case | Carton |
