The CDN ST8 is designed according to IEC/EN 61000-4-6, which specifies clearly on the design and performance of coupling/decoupling networks. The CDN ST8 is applicable to 8-line (4-pair) shielded balanced lines.
| Technical Parameters | |
|---|---|
| Frequency Range | 150 kHz ~80 MHz |
| Max. AC Voltage (L-PE) | 100 V |
| Max. DC Voltage (L-PE) | 150 V |
| Max. Current | 1 A |
| RF Input Terminal（BNC） | <20 V |
| EUT Port | RJ45 |
| AE Port | RJ45 |
| Common-mode Impedance (EUT) | |
| 150 kHz ~ 26 MHz | 150 Ω±20 Ω |
| 26 MHz ~ 80 MHz | 150 Ω +60 Ω /-45 Ω |
| Voltage Division Coefficient（RF Input-EUT） | |
| 150 kHz ~ 80 MHz | 9.5 dB±1 dB |
| 80 kHz ~ 230 MHz | 9.5 dB±2 dB |
| Common-mode Disturbances Suppression (RF Port / AE) | |
| 150 kHz: | >60 dB |
| 1.5 MHz: | >60 dB |
| 30 MHz: | >50 dB |
| 80 MHz: | >50 dB |
| 230 MHz: | >40 dB |
Model：CDN M2/16
The CDN M2/16 is designed according to IEC/EN 61000-4-6, which specifies clearly on the design and performance of coupling/decoupling networks.
Model：CDN M2/16
The CDN M2/16 is designed according to IEC/EN 61000-4-6, which
...

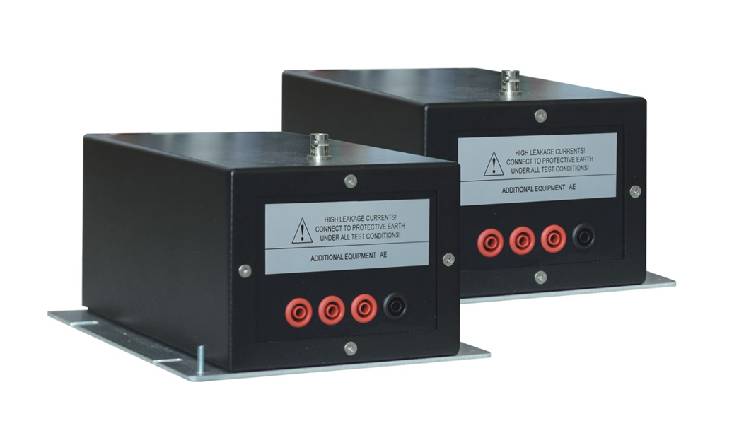

Model：CDN M4N-32
The CDN M4N/32 is designed according to IEC/EN 61000-4-6, which specifies clearly on the design and performance of coupling/decoupling networks.
Model：CDN M4N-32
The CDN M4N/32 is designed according to IEC/EN 61000-4-6, whi
...
Model：CDN AF2
The CDN AF2 is applicable to 1-pair unscreened unbalanced lines.
Model：CDN AF2
The CDN AF2 is applicable to 1-pair unscreened unbalanced lines.
...
Model：CDN USB
The CDN USB is applicable to USB port serial lines (shielded lines).
Model：CDN USB
The CDN USB is applicable to USB port serial lines (shielded lin
...
