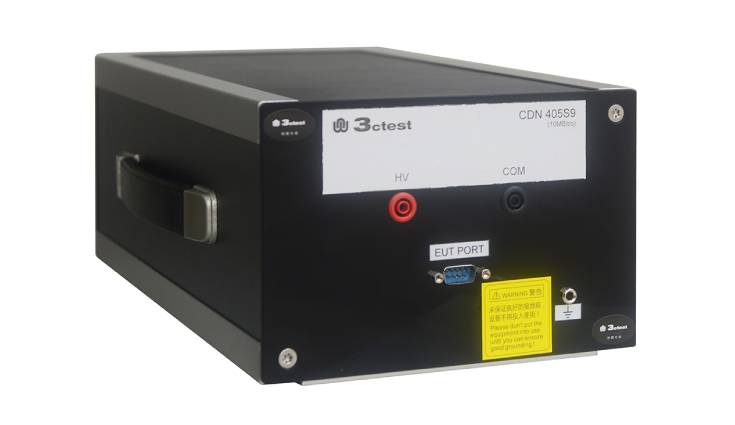

Description
The CDN 405S9 is designed in accordance with IEC610000-4-5 and applicable to shielded cables of 9-core, to which surge tests are applied. The test level up to 6 kV and current up to 1 A.
The CDN 405S9 can meet the test requirement of one-end and two-end grounded shielding.
Features：
- Maximum current up to 1A.
- Maximum testing waveform level is 6 kV.
- Applicable to coupling/decoupling for 9-core shielded cables.
- Meet the test requirement of one-end and two-end grounded shielding.
- All plugs are equipped with banana plugs to ensure the safety of users.

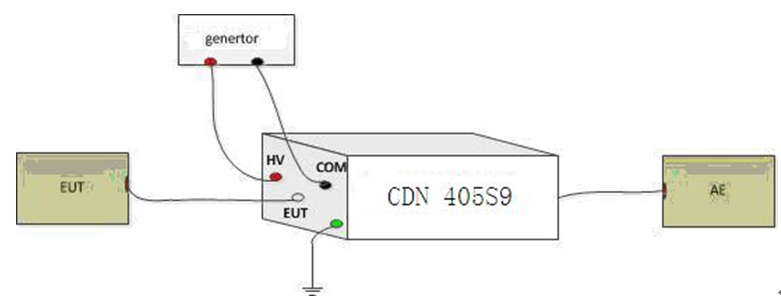

Test Connection Schematic Drawing
Standard Schematic Diagram

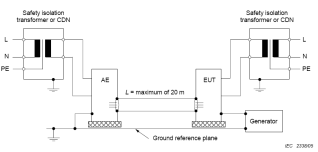

Figure 1（Shields grounded at both ends）：
Standard Schematic Diagram

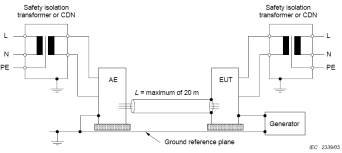

Figure 2（Shields grounded at one end）：
