Description

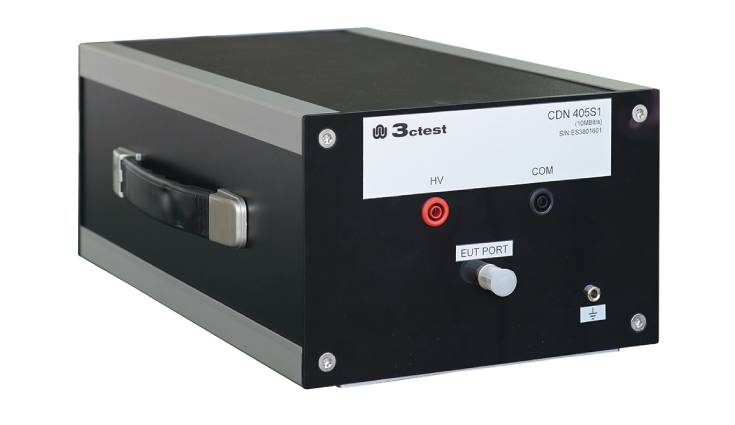

The CDN 405S1 is designed in accordance with IEC610000-4-5 and applicable to shielded cables of one-core, to which surge tests are applied. The test level up to 6 kV and current up to 5 A.
The CDN 405S1 can meet the test requirement of one-end and two-end ground shielding.
Features：
- Applicable to coupling/decoupling for one-core shielded cables.
- Meet the test requirement of one-end and two-end grounded shielding.
- All plugs are equipped with banana plugs to ensure the safety of users.

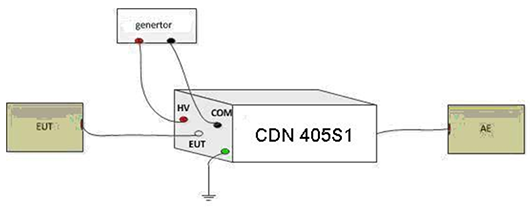

Test Connection Schematic Drawing
Standard Schematic Diagram Standard Schematic Diagram

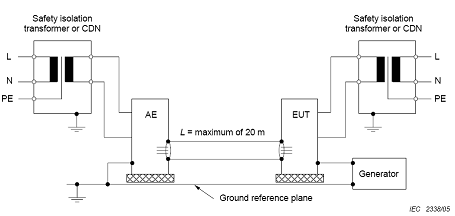

Figure 1（Shields grounded at both ends）：
Standard Schematic Diagram Standard Schematic Diagram

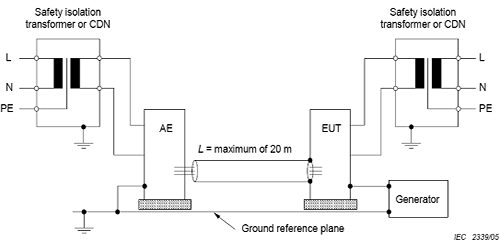

Figure 2（Shields grounded at one end）：
