Design and performance of coupling/decoupling network is clearly specified in IEC/EN 61000-4-6. Cable type and transferred signals used for each type of coupling/decoupling network are also specified in the standard.

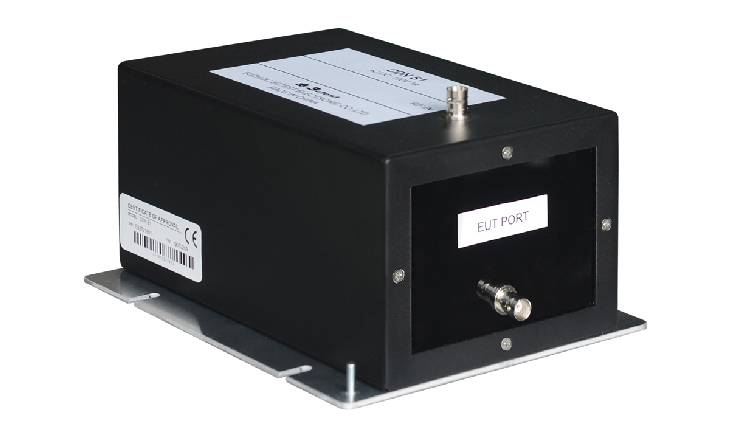

CDN S1 is designed for single core coaxial shielded line as per IEC/EN 61000-4-6.
| Technical Parameters | |
|---|---|
| Frequency Range | 150 kHz ~230 MHz |
| Max. AC Voltage (L-PE) | 100 V |
| Max. DC Voltage (L-PE) | 150 V |
| Max. Current | 1 A |
| RF Input Terminal（BNC） | <20 V |
| EUT Port | BNC |
| AE Port | BNC |
| Common-mode Impedance (EUT) | |
| 150 kHz ~ 26 MHz | 150 Ω±20 Ω |
| 26 MHz ~ 80 MHz | 150 Ω +60 Ω /-45 Ω |
| Voltage Division Coefficient（RF Input-EUT） | |
| 150 kHz ~ 80 MHz | 9.5 dB±1 dB |
| 80 MHz ~ 230 MHz | 9.5 dB±2 dB |
| Common-mode Disturbances Suppression (RF Port / AE) | |
| 150 kHz: | >60 dB |
| 1.5 MHz: | >60 dB |
| 30 MHz: | >50 dB |
| 80 MHz: | >50 dB |
| 230 MHz: | >40 dB |
| General parameters | |
| Dimension | 210 mm(L) x 170 mm(W) x 115 mm(H) |
| Weight | About 4 Kg |
| Enclosure Material | Aluminum |
| Ambient Temperature | 15 ℃ – 35 ℃ |
| Relative Humidity | 45%-75% |
| Package Case | Carton |
