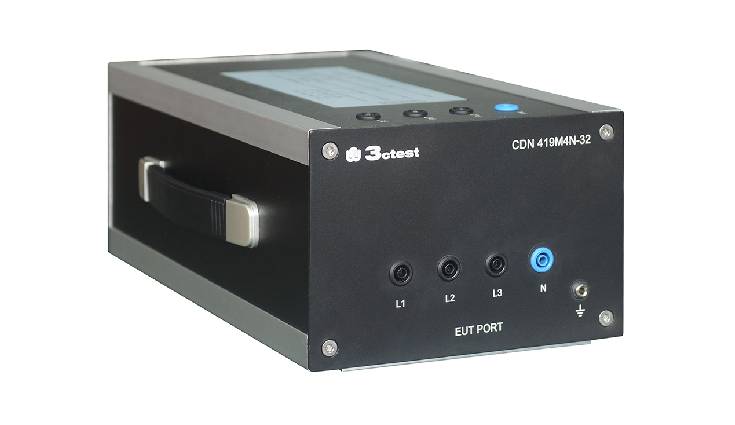

CDN 419M4N-32 is specifically designed to meet the requirements as per Standard IEC 61000 – 4 -19：2014, which can be applied to three-phase (four-wire supply lines) mains supply systems, with its coupling voltages of testing for immunity to conducted, differential-mode disturbances up to 30 V.

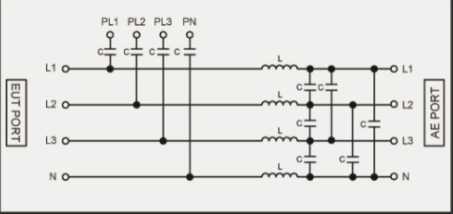

1. Standard Schematic Diagram

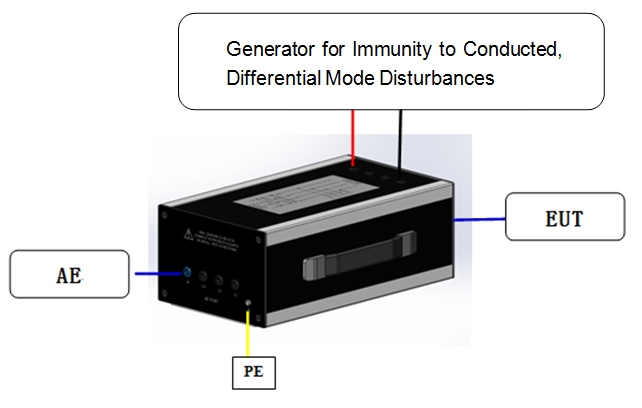

2. Test Connection Schematic Drawing
| Technical Parameters | |
|---|---|
| Standard | IEC 61000-4-16:2015 |
| Coupling Frequency | 0 Hz-150 KHz, CW wave |
| Circuit Impedance | M2/200 Ω * 2, M3/300 Ω * 2 |
| Coupling Voltage | 300 V |
| Coupling Mode | 2-line/3-line common mode (to earth simultaneously) |
| Coupling Component | 1 μF capacitor |
| Operating Voltage | Max. 400 V DC |
| Operating Current | Max. 32 A |
| General Parameters | |
| Weight | 3.6 Kg |
| Dimension | 250 mm (L) x 200 mm (W) x 133 mm (H) |
| Enclosure Material | Aluminum alloy |
| Ambient Temperature | 15 ℃ – 35 ℃ |
| Relative Humidity | 45% – 75% |
| Package Case | Carton |
Model：CDN 416T2
The coupling/decoupling networks CDN 416T2 is designed according to IEC 61000-4-16:2015 and applied to 2-line tests for immunity to conducted.
Model：CDN 416T2
The coupling/decoupling networks CDN 416T2 is designed accordi
...
The CN 416M5-32 coupling network is suitable for (common mode conducted immunity) 5-wire cables, and its coupled common mode conducted immunity voltage can reach 300V.
Model：CN 416M5-32
The CN 416M5-32 coupling network is suitable for (c
Model：CDN 416T8
The CDNs for Test of Immunity to Common-mode Conducted Disturbances CDN 416T8 is designed as per IEC 61000-4-16:2015 and used to test the immunity to conducted.
Model：CDN 416T8
The CDNs for Test of Immunity to Common-mode Conducted Disturb
...
The CN 416M5-100 coupling network is suitable for (common mode conducted immunity) 5-wire cables, and its coupled common mode conducted immunity voltage can reach 300V.
Model：CN 416M5-100
The CN 416M5-100 cou
