The CDN RJ45 is designed according to IEC/EN 61000-4-6, which defined clearly the performance of coupling/decoupling networks as well as the cable type used in it and transmission signal. It is applicable to 4-pair-8-line unshielded balanced communication lines.
| Technical Parameters | |
|---|---|
| Model No. | CDN RJ45 |
| Standard | IEC/EN 61000-4-6 |
| Frequency Range | 150 kHz ~230 MHz |
| Max. AC Voltage （Line -to-ground） | 100 V |
| Max. DC Voltage （Line -to-ground） | 150 V |
| Max. Current | 1 A |
| RF Input Terminal（BNC） | <20 V |
| EUT Port | RJ45 |
| AE Port | RJ45 |
| Common-mode Impedance (EUT) | |
| 150 kHz ~ 24 MHz | 150 Ω±20 Ω |
| 24 MHz ~ 80 MHz | 150 Ω +60 Ω /-45 Ω |
| 80 MHz ~ 230 MHz | 150 Ω +60 Ω /-45 Ω |
| General parameters | |
| Dimension | 210 mm(L) x 170 mm(W) x 115 mm(H) |
| Weight | About 4 Kg |
| Enclosure Material | Aluminum |
| Ambient Temperature | 5 ℃ – 40 ℃ |
| Relative Humidity | 20%-80% |
| Package Case | Carton |

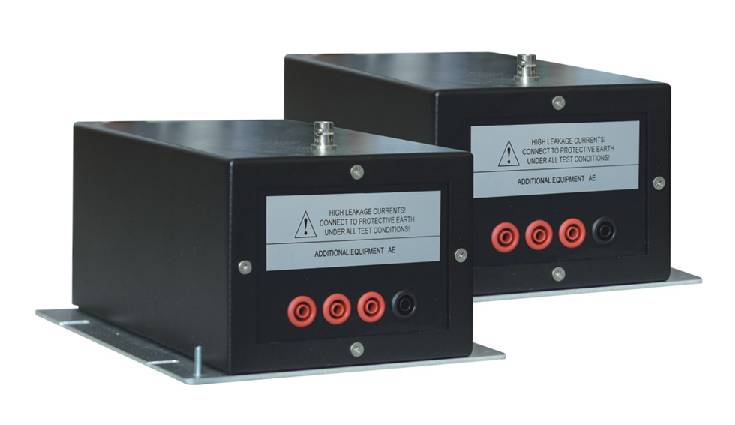

Model：CDN M4/16
The CDN M4/16 is applicable to three-phase (4-wire supply lines) mains supply systems.
Model：CDN M4/16
The CDN M4/16 is applicable to three-phase (4-wire supply line
...
Model：CDN ST8
The coupling/decoupling networks for screened symmetrical lines CDN ST8 is applicable to 8-line (4-pair) shielded balanced lines.
Model：CDN ST8
The coupling/decoupling networks for screened symmetrical lines
...
Model：CDN T2
The coupling/decoupling networks for unscreened symmetrical lines CDN T2 is applicable to 1-pair unscreened balanced lines.
Model：CDN T2
The coupling/decoupling networks for unscreened symmetrical lines
...
Model：CDN M2/16
The CDN M2/16 is designed according to IEC/EN 61000-4-6, which specifies clearly on the design and performance of coupling/decoupling networks.
Model：CDN M2/16
The CDN M2/16 is designed according to IEC/EN 61000-4-6, which
...
