Description

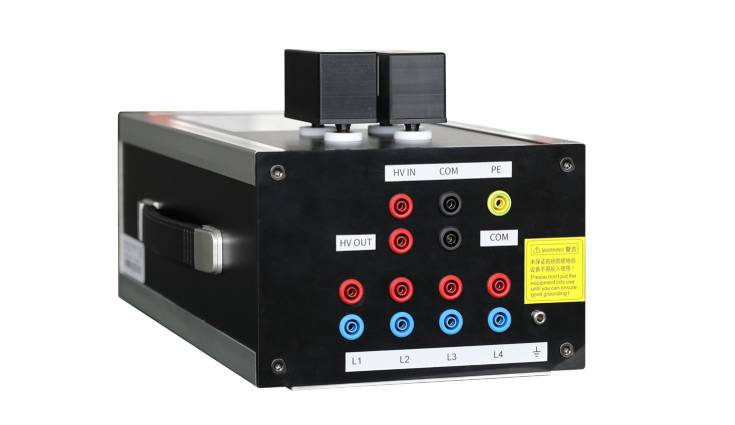

CN 405AF4 is a product designed according to the lightning test method of railway communication signal equipment. The design of pluggable coupler is convenient for customers to choose the corresponding coupler according to different test conditions, which is suitable for balanced communication transmission line-ground test and line test. It is also suitable for non-balanced communication transmission wire-to-ground test and wire-to-wire test. It is compact and easy to carry and use.
Features：
- Meet the requirements of TB/T 3498-2018 standard
- 1/2/3/4 Line to line/line to ground
- Coupled waveforms 1.2/50μs&8/20μs and 10/700&5/320μs
- Pulse voltage up to 10KV
- The interface specification is 4mm banana head
- Replace couplers according to test requirements

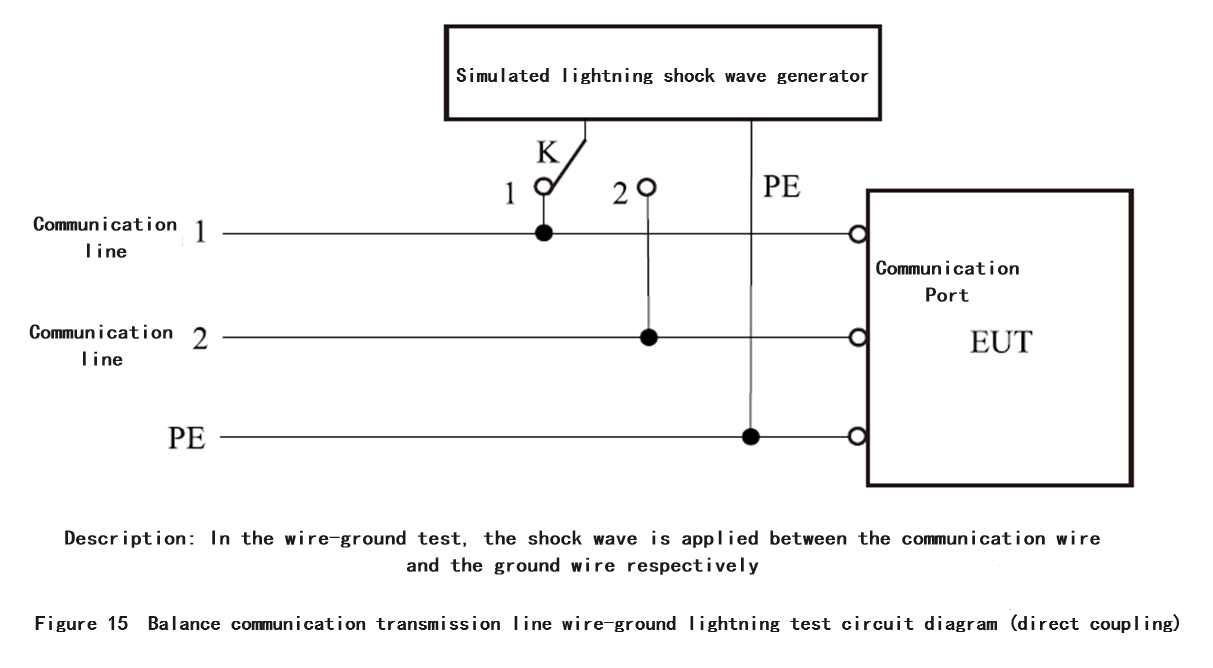

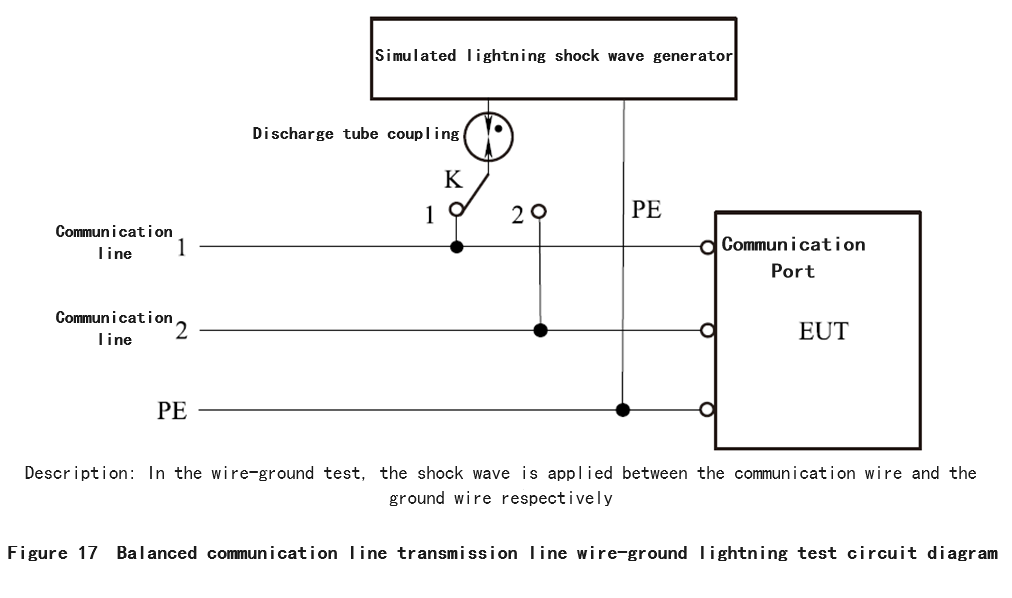

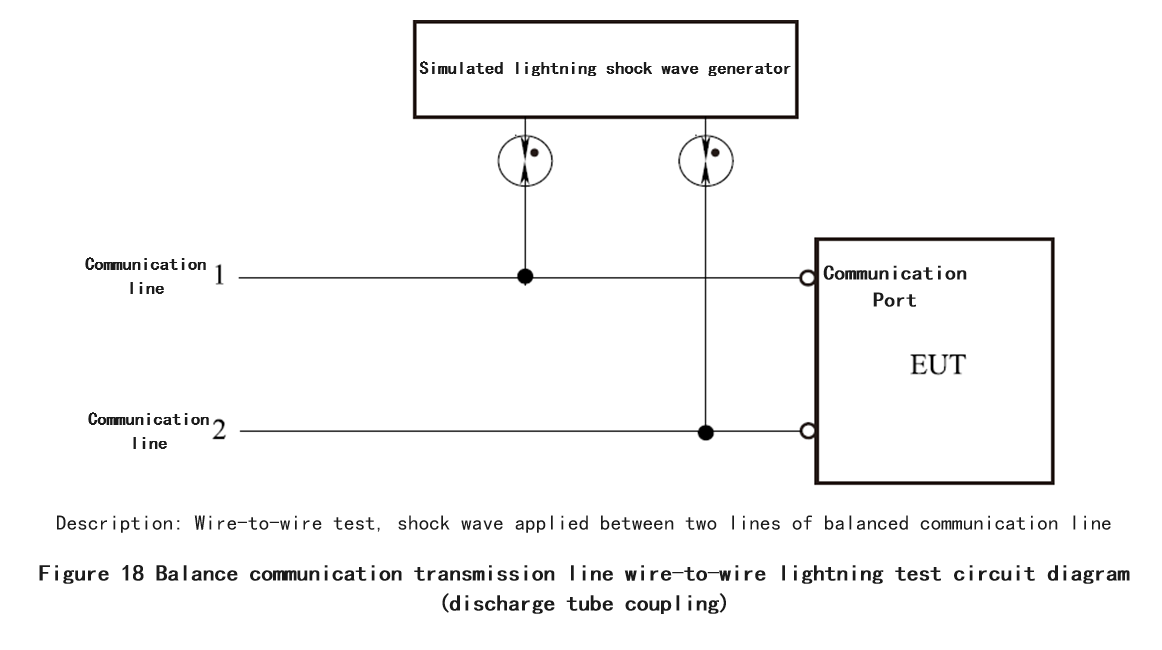

The standard connection diagram is as follows:
