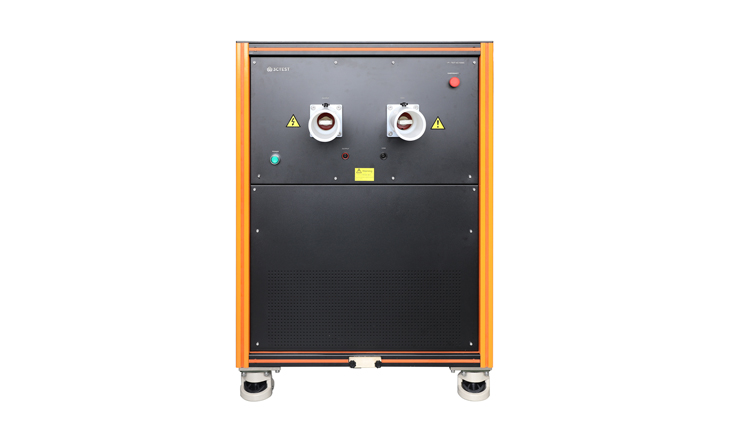

Coupling Transformer TPT-7637-4C1000C

Model：TPT-7637-4C1000C

The TPT-7637-4C1000C coupling transformer is a broadband coupling transformer designed for the anti-interference testing needs of standards such as ISO 21498-2:2021.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

The TPT-7637-4C1000C coupling transformer is a broadband coupling transformer designed for the anti-interference testing needs of standards such as ISO 21498-2:2021 and ISO 7637-4:2020. It can transmit time-harmonic signals (sine) or pulse signals to the tested equipment (EUT) through magnetic coupling, and has the characteristics of waveform distortion free, large power capacity, and physical isolation from EUT

Features：

  • High load current;
  • Large power capacity;
  • Wide frequency range;
  • 22U cabinet design for convenient transportation.

Standard

  • ISO 7637-4
  • ISO 21498-2
  • MES PW 67602

Specifications

Technical Parameters
Frequency Range 300 Hz-150 kHz
Maximum Coupling Voltage 160 Vpp (open circuit, 1:1)
Maximum Coupling Current 240 App (short circuit, 4:1)
Turn Ratio 1:1 and 2:1 and 4:1
Maximum EUT Current/Voltage* 600 A DC/1000 V DC@Max 20 min; 1000 A DC/1000 V DC@Max 10 min
Size 800 mm (width) * 1150 mm (height) * 1405 mm (depth)
Weight 570 kg
Temperature Range 15℃~35℃
Humidity Range 45% ~ 75%
Pressure Range 86 kPa ~ 106 kPa
*The maximum working time of the coupling transformer is limited by the maximum EUT current. It is recommended that when using 600 A DC/1000 V DC, the working time should not exceed 20 minutes; When using 1000 A DC/1000 V DC, the working time should not exceed 10 minutes.

Downloads

Adobe PDF

Coupling Transformer TPT-7637-4C1000C Datasheet

Language: English
