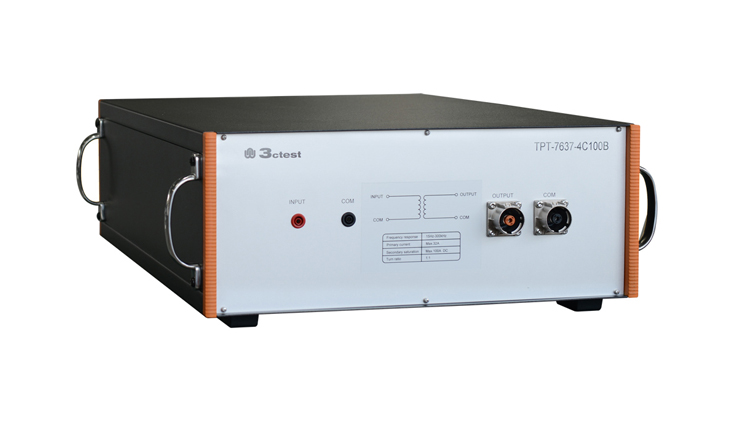

The coupling transformer TPT-7637-4C100B is specially designed according to the pulse B test requirement specified in ISO 7637-4:2020, which is capable of transferring time-harmonic signals (sine waves) or pulse signals to EUT through magnetic coupling method with features of distortion-free waveform, and physical isolation from the EUT etc. It is also used in EMC conducted susceptibility / immunity tests of Mazda MES PW 67602, GJB 151A, 151B and MIL-STD-461F.
| Technical Parameters | |
|---|---|
| Max Unsaturated Voltage | 15 V@15 Hz≤f≤3 kHz 25 V@3 kHz≤f≤30 kHz 2.5 V@30 kHz≤f≤300 kHz |
| Primary Max Current | 32A |
| EUT Max Current | 100A |
| Frequency Range | 10 Hz ~ 300 kHz |
| Dimension | 440 mm (L)*190 mm (H)*585 mm(D) |
| Weight | 60 kg |
Model：HVSE 400
The high-voltage shielding equipment HVSE 400 is designed to improve the shielding effect of artificial mains network TANHV 400, which is required for tests in the electric vehicles or hybrid electric vehicles.
Model：HVSE 400
The high-voltage shielding equipment HVSE 400 is designed to im
...
Model：TPT-7637-4C1000C
The TPT-7637-4C1000C coupling transformer is a broadband coupling transformer designed for the anti-interference testing needs of standards such as ISO 21498-2:2021.
Model：TPT-7637-4C1000C
The TPT-7637-4C1000C coupling transformer is a broadban
...
Model：7637-4R500/120
The 7637-4R500/120 is designed to meet the requirement of matched impedance and circuit capacitor of Waveform A, waveform B and waveform C specified in ISO 7637-4. The resistor or capacitor can be used independently or combined in parallel.
Model：7637-4R500/120
The 7637-4R500/120 is designed to meet the requirement of
...
Model：HVSE 200
The HVSE 200 is applied to the common mode/differential mode testing switching of Waveform A and Waveform C specified in ISO 7637-4. Through plugging in corresponsive port, HVSE 200 can save users from complicated wiring.
Model：HVSE 200
The HVSE 200 is applied to the common mode/differential mode te
...
