Description
The coupling transformer TPT-CS101-50B is specially designed according to MIL-STD-461F/G CS101 and RTCA DO-160G S18 with features of distortion-free waveform, and physical isolation from the EUT etc.

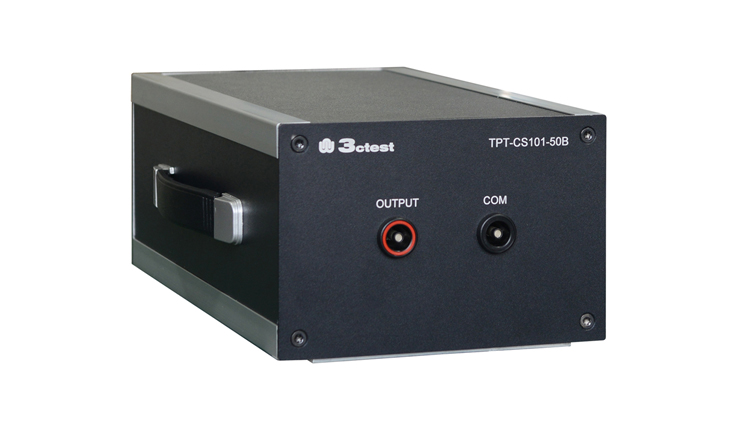

Coupling Transformer TPT-CS101-50B
Standard
- RTCA/DO-160G
- MIL-STD-461F/G
Specifications
| Technical Parameters | |
|---|---|
| Frequency Range | 25 Hz ~ 150 kHz |
| Max. EUT Current | 50 A |
| Turns ratio | 2:1 |
| Audio Frequency Power | 200 W |
| Dimension | 355 mm (L)*200 mm (W)*133 mm(H) |
| Weight | About 15 kg |
Related products
-

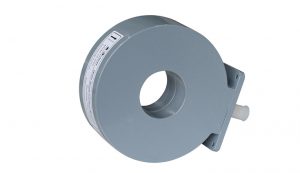

MIL-STD-461 Series/ GJB 151、181 SeriesWideband Current Monitoring Clamp
Model：TWCM-200
Wideband current monitoring clamp TWCM-200 is used to measure 1 kHz ? 200 MHz alternating current and time-domain impulse current.
Model：TWCM-200
Wideband current monitoring clamp TWCM-200 is used to
...(0 reviews) -
MIL-STD-461 Series/ GJB 151、181 SeriesDamped Sinusoidal Transients Generator
Model：DOS-CS116
High Frequency Damped Sine Wave Generator DOS-CS116 is a high end generator which is designed to meet MIL-STD-461E/F/G CS116, GJB 151A-97 CS116.
Model：DOS-CS116
High Frequency Damped Sine Wave Generator DOS-CS116 is a high
...(0 reviews) -

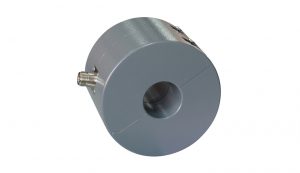

MIL-STD-461 Series/ GJB 151、181 SeriesBulk Current Injection Probe BCIP-400
