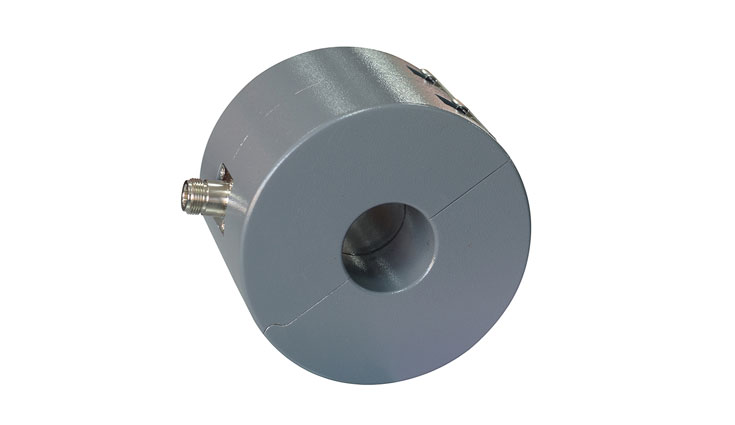

BCIP 7637-3 Current injection clamp is a wideband current coupling device, which can transfer the time-harmonic signal current or pulse signal current to the test device (EUT) through magnetic coupling. It has the characteristics of waveform distortion free and physical isolation from EUT. It meets the needs of current injection standards such as ISO 7637-3-2007/2016 and is widely used in electromagnetic compatibility conduction sensitivity (immunity) testing.
| Technical parameters | |
|---|---|
| Frequency | 4 kHz – 100 MHz |
| Maximum Input Power | 100 W for 30 minutes |
| Connector Type | N type |
| Internal Diameter | 40 mm |
| External Diameter | 127 mm |
| Height | 90 mm |
| Weight | 3.12 Kg |
